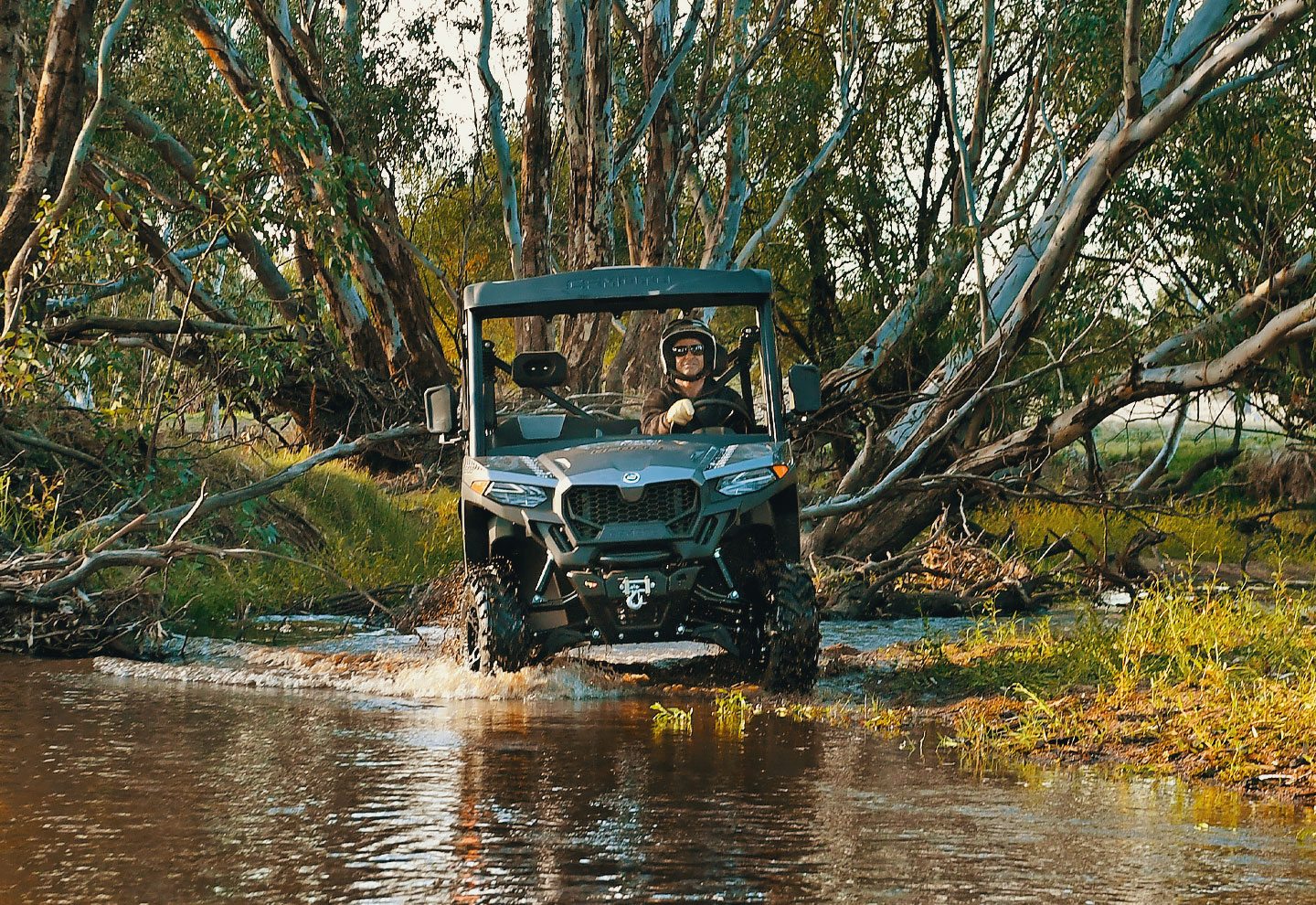

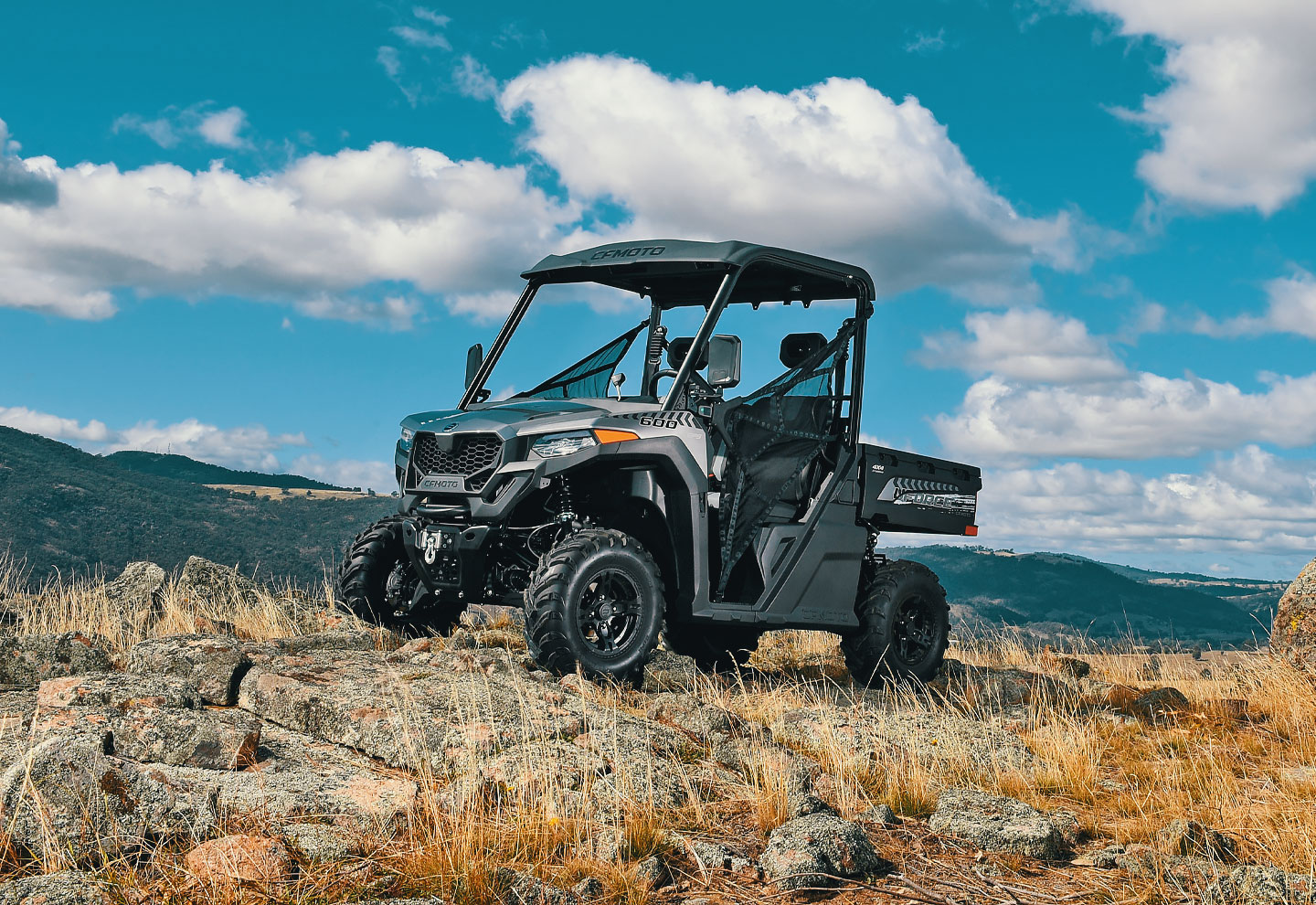

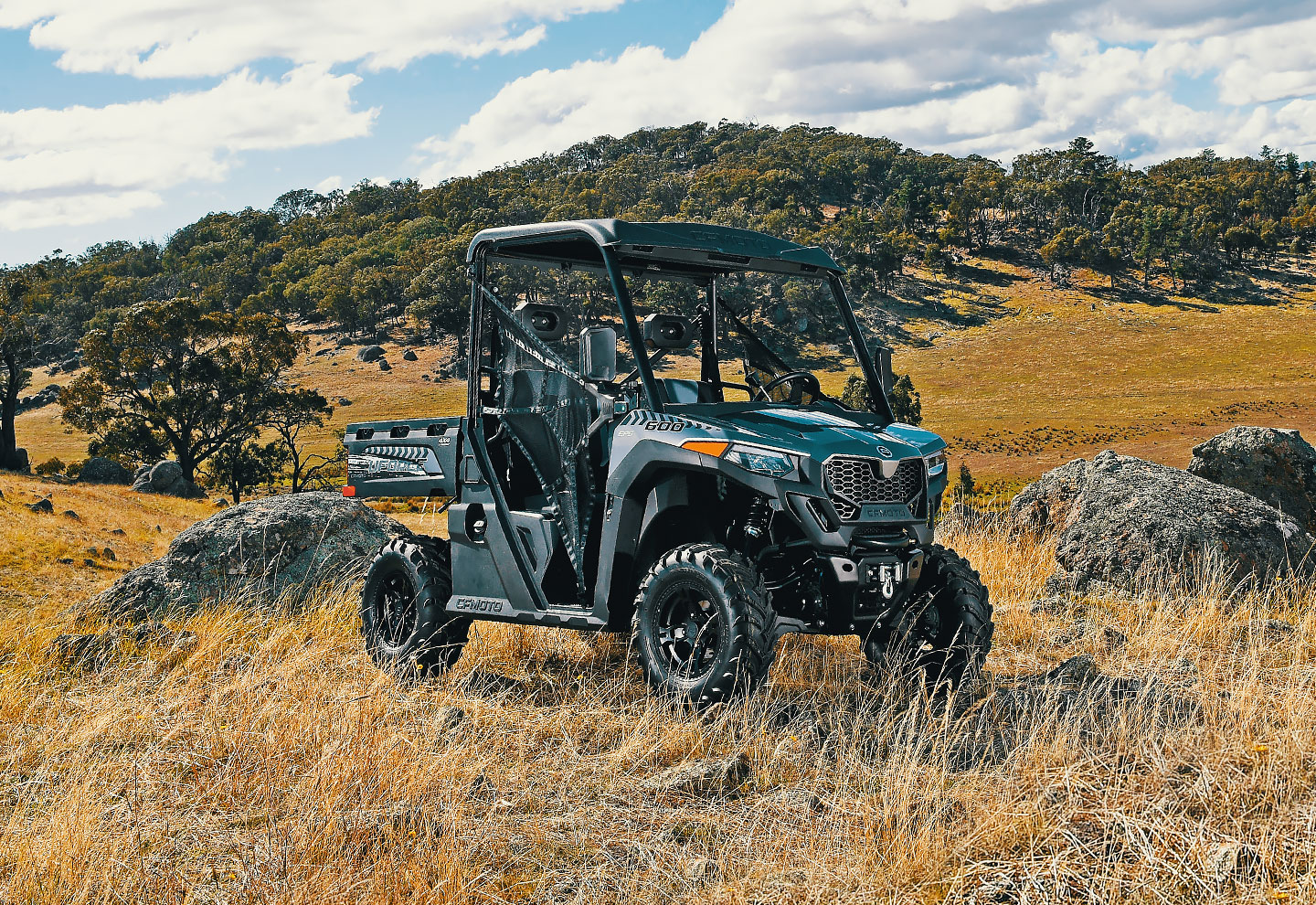

UFORCE 600 EPS

THE STRONGER ALL-ROUNDER

The UFORCE 600 EPS is a package that represents a quantum leap in design, performance and ergonomics, with key updates including electronic hill descent control and a limited-slip rear differential.

The UFORCE 600 EPS is truly 'The Stronger All-Rounder' and is ready for duty.

Now available in three different models. To learn more about the UFORCE 600 range contact your CFMOTO dealer.

UFORCE 600 EPS

THE STRONGER
ALL-ROUNDER


The UFORCE 600 EPS is a package that represents a quantum leap in design, performance and ergonomics, with key updates including electronic hill descent control and a limited slip rear differential.

The UFORCE 600 EPS is truly 'The Stronger All-Rounder' and is ready for duty.

Now available in three different models. To learn more about the UFORCE 600 range contact your CFMOTO dealer.


ENGINE ROOM

The 580cc liquid-cooled fuel-injected engine produces maximum torque and power at much lower revs – so it hardly raises a sweat. Alongside 2WD/4WD, the engine has two drive modes and is mated to a Canadian CVTech transmission with electronic hill decent control (engine braking).

BRAKING STRIDES

The electronic hill decent control takes the ‘nerve-jangling’ part out of a steep descent, and also means less wear and tear on the brakes.

LIMITED-SLIP DIFFERENTIAL

Tired of ripping up your paddocks when you put the foot down? CFMOTO’s limited-slip rear differential will help out, and it’s all an automatic process, too: no button to press.

BENCH SEAT

Plenty of in cab space with an all-new bench seat configuration. The seat’s also adjustable for the driver, as is the steering wheel tilt.

THE STRONGER
ALL-ROUNDER

Hard work is wired into the UFORCE 600’s DNA with a cargo bed capacity of 250kg and a towing capacity of 680kg.

EASY ACCESS

The front panel tilts 120 degrees to check coolant levels and undertake more complex maintenance, and the rear cargo box can be tilted 50 degrees to give the engine the once over.

HIDDEN GEMS

A whopping 96 litres in the enclosed storage bins, most under the large bench seat.

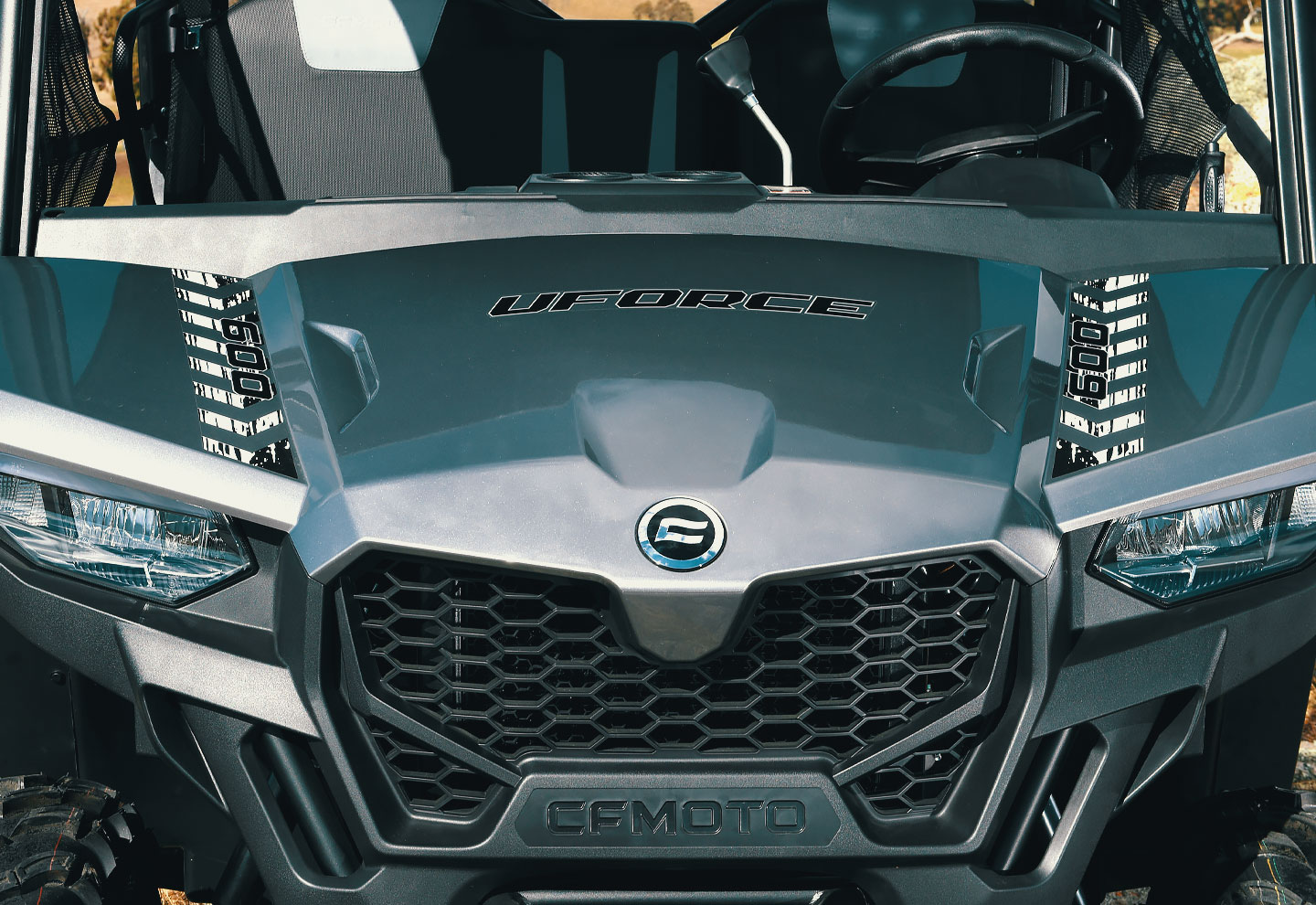

PREMIUM APPEARANCE

New front-end design, premium paint and aluminium wheels add an extra layer of style.

SUPPORT
YOU CAN TRUST

Trusted by more than 30,000 Aussie farmers, CFMOTO is a brand you can rely on. The UFORCE 600 EPS is backed by a three-year warranty and supported by an 80-plus national dealer network to keep you going 24/7.

MODEL
HIGHLIGHTS

- 41hp, 580cc, single-cylinder four-stroke engine
- Bosch electronic fuel injection (EFI)
- Canadian CVTech Transmission
- Electronic hill descent control
- Electronic power steering (EPS)
- Selectable 2WD/4WD
- Push button-locking front differential
- Rear limited-slip differential
- Dual A-Arm independent suspension
- Four-wheel hydraulic disc brakes
- 12-inch alloy wheels
- 25-inch six-ply Innova tyres
- Bench seat with driver seat adjustability
- 96 litres of cabin storage
- 35-litre fuel tank
- Large gas-assisted tipping cargo tray
- CFMOTO roof kit
- 3500lb winch
- 680kg towing capacity
- 250kg rear tray carrying capacity
- Tow pack, indicators, horn and side mirrors
- Available in Titanium Grey
- Three-year warranty

UFORCE 600 EPS

ENGINE ROOM

The 580cc liquid-cooled fuel-injected engine produces maximum torque and power at much lower revs – so it hardly raises a sweat. Alongside 2WD/4WD, the engine has two drive modes and is mated to a Canadian CVTech transmission with electronic downhill descent control (engine braking).

UFORCE 600 EPS

BRAKING STRIDES

The electronic downhill descent control takes the ‘nerve-jangling’ part out of a steep drop, and also means less wear and tear on the brakes.

UFORCE 600 EPS

LIMITED-SLIP DIFFERENTIAL

Tired of ripping up your paddocks when you put the foot down? CFMOTO’s limited-slip rear differential will help out, and it’s all an automatic process, too: no button to press.

UFORCE 600 EPS

BENCH SEAT

Plenty of in cab space with an all-new bench seat configuration. The seat’s also adjustable for the driver, as is the steering wheel tilt.

UFORCE 600 EPS

THE STRONGER ALL-ROUNDER

Hard work is wired into the UFORCE 600’s DNA with a cargo bed capacity of 250kg and a towing capacity of 680kg.

UFORCE 600 EPS

EASY ACCESS

The front panel tilts 120 degrees to check coolant levels and undertake more complex maintenance, and the rear cargo box can be tilted 50 degrees to give the engine the once over.

UFORCE 600 EPS

HIDDEN GEMS

A whopping 96 litres in the enclosed storage bins, most under the large bench seat.

UFORCE 600 EPS

PREMIUM APPEARANCE

New front-end design, premium paint and aluminium wheels add an extra layer of style.

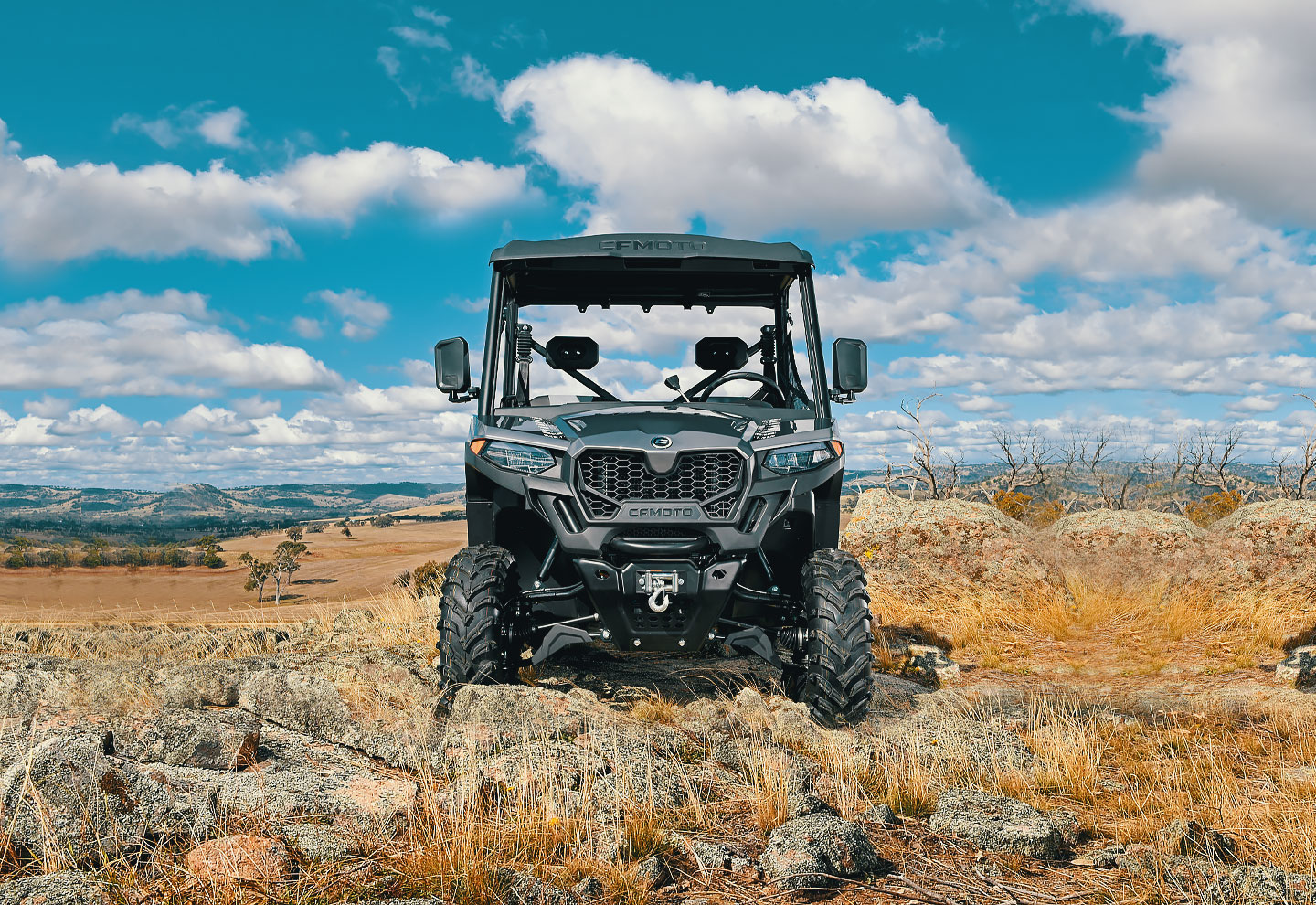

3500lb WINCH

To keep you out of trouble the UFORCE 600 EPS comes standard with 3500lb electric winch.

UFORCE 600 EPS

SUPPORT YOU
CAN TRUST

Trusted by more than 30,000 Aussie farmers, CFMOTO is a brand you can rely on. The UFORCE 600 EPS is backed by a three-year warranty and supported by an 80-plus national dealer network to keep you going 24/7.

UFORCE 600 EPS

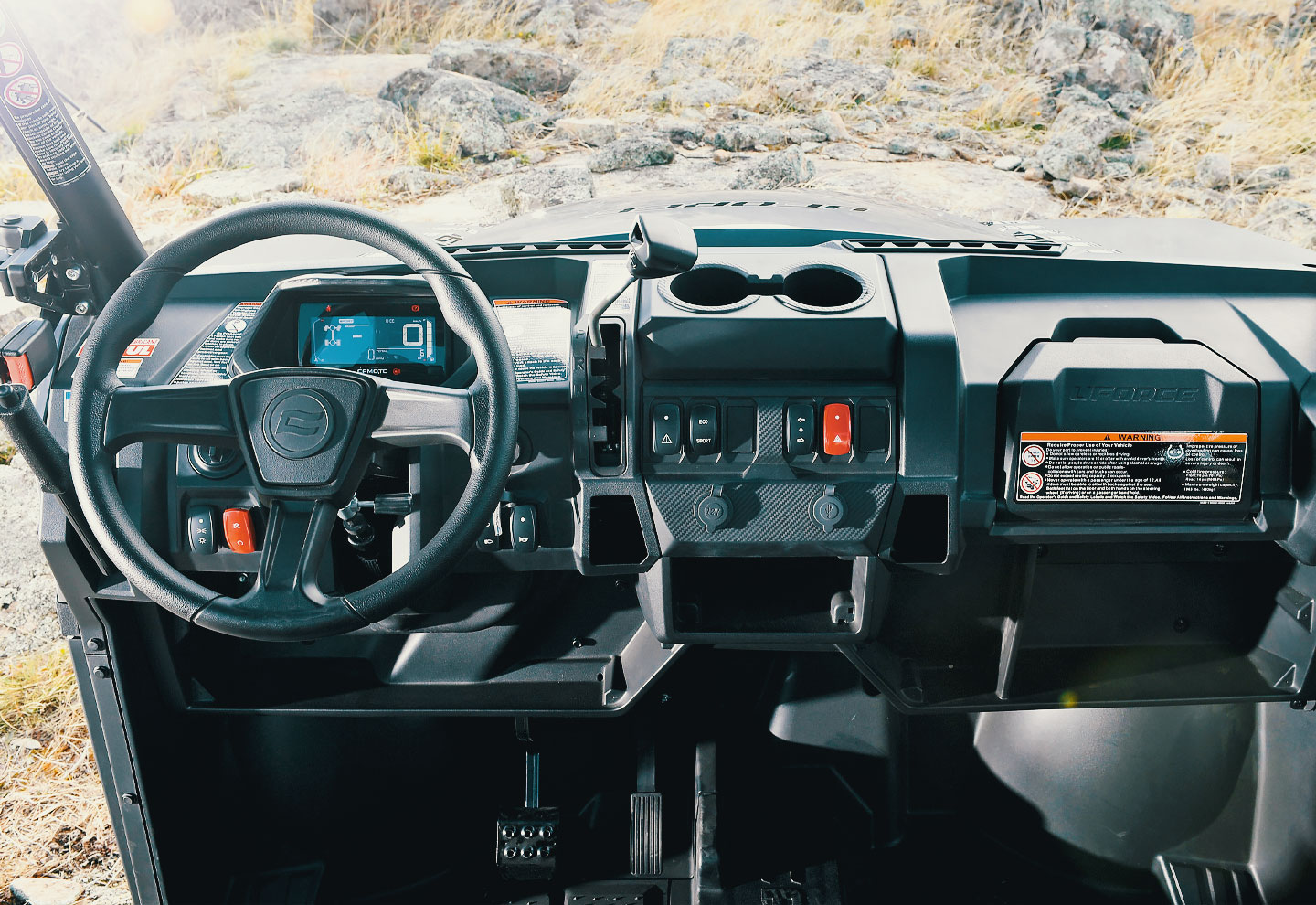

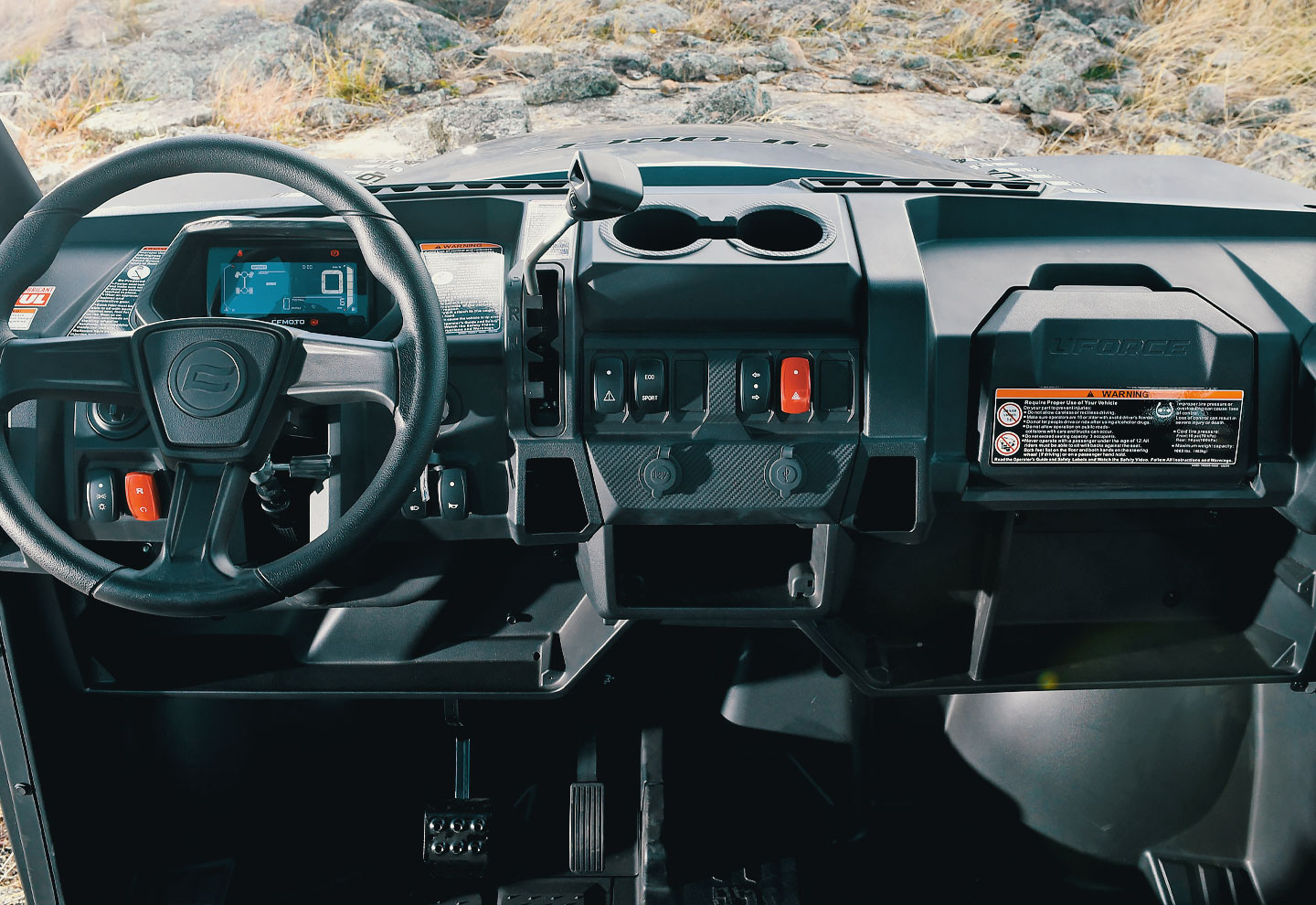

CABIN

  • - Spacious bench seat
  • - 96 litres of in cabin storage
  • - Easy reach gear shifter with L-H-N-R range
  • - Separate easy reach handbrake
  • - Selectable 2WD/4WD and locking front differential

UFORCE 600 EPS

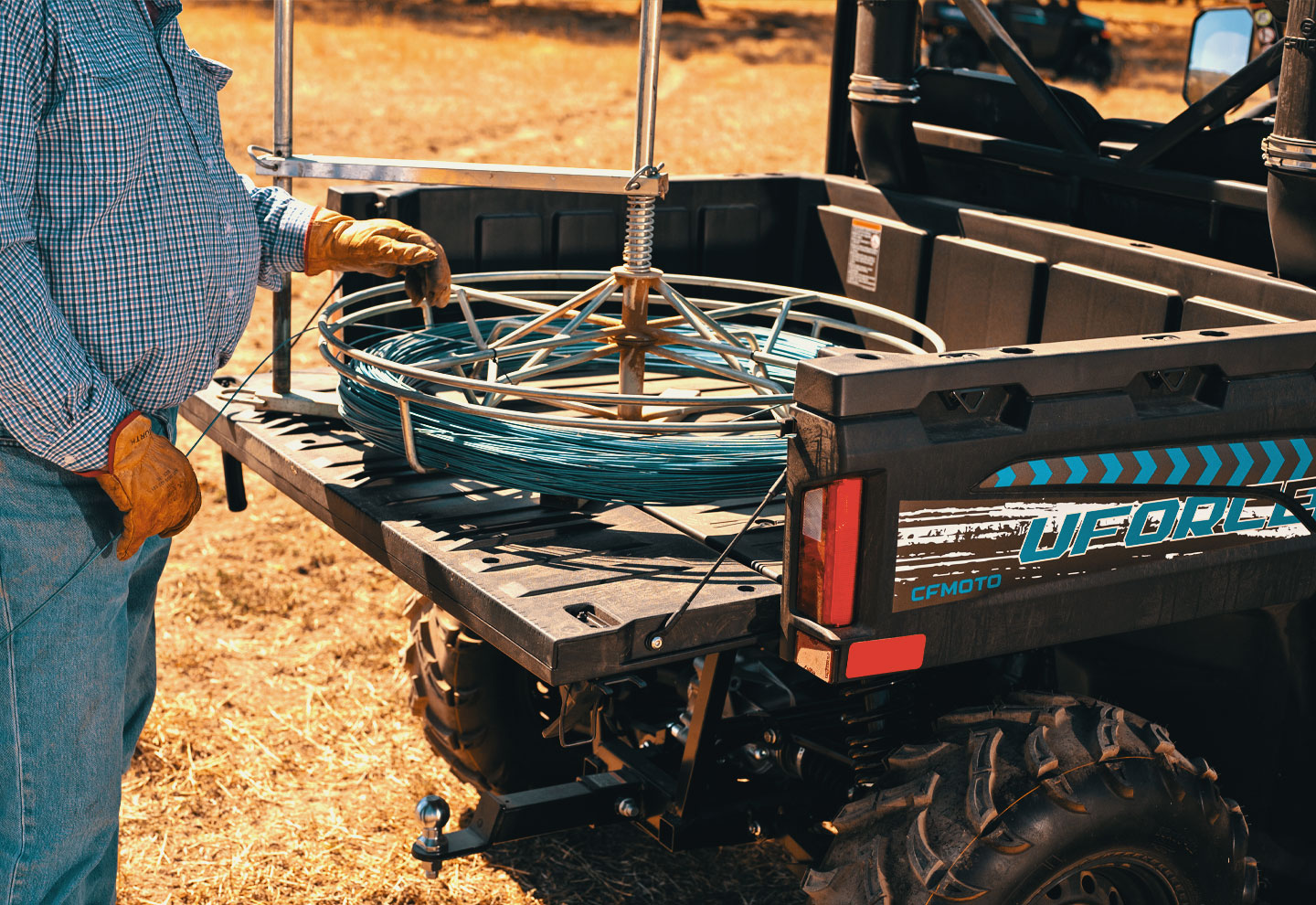

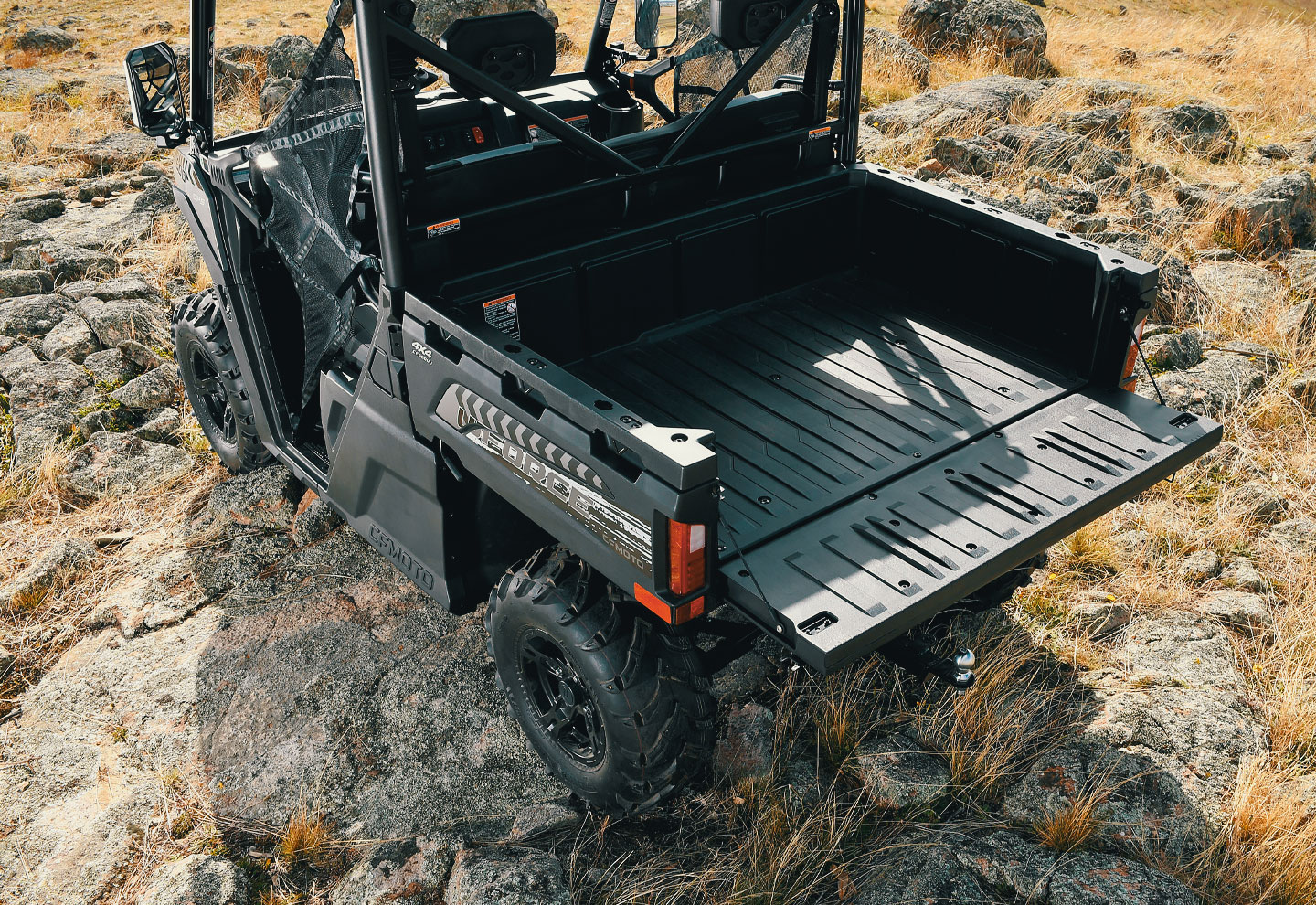

CARGO

  • - 680kg towing capacity
  • - 250kg tray capacity
  • - Gas-assisted tipping cargo tray with integrated tie-down locations
  • - Tow package included as a standard feature

UFORCE 600 EPS

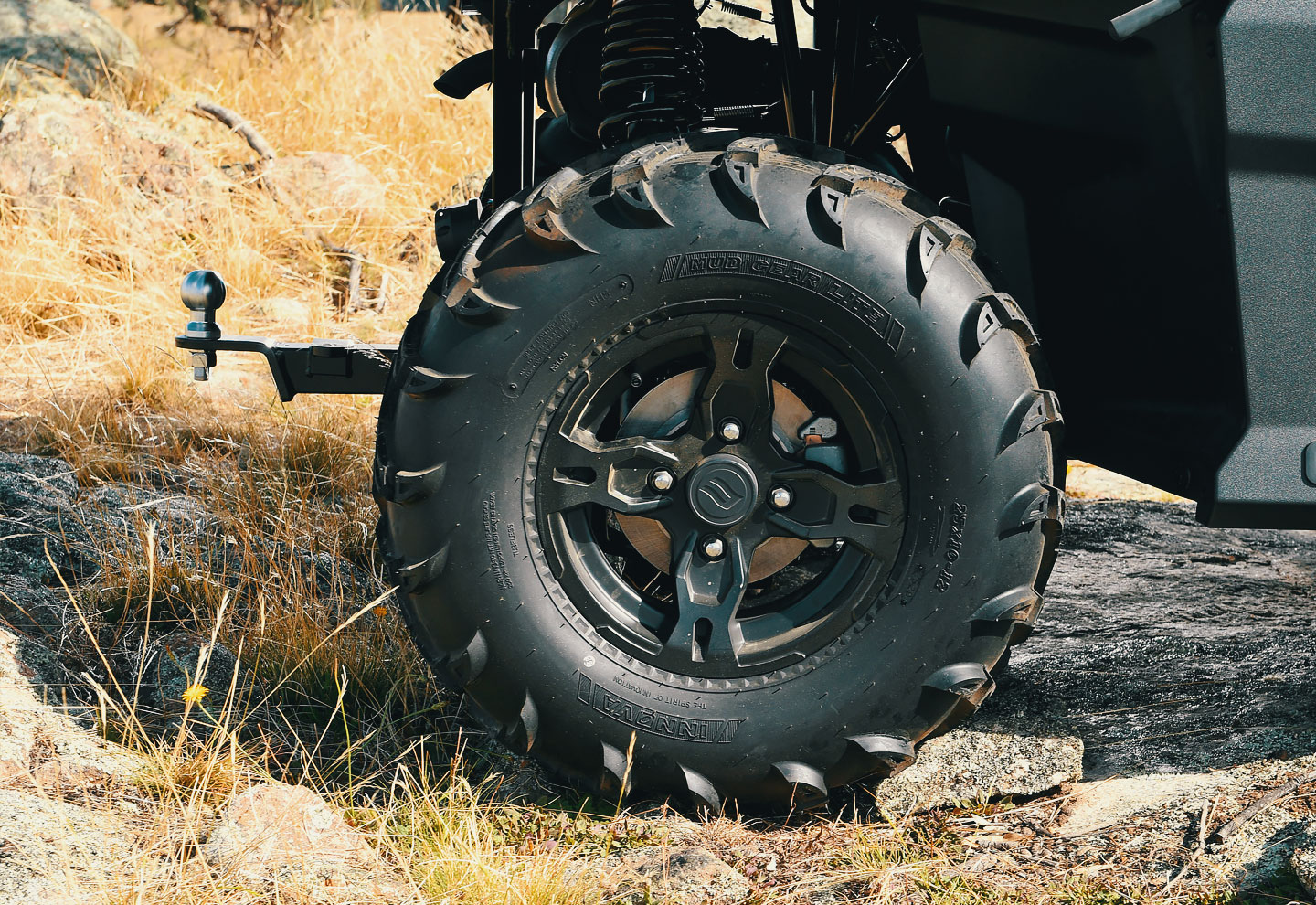

WHEELS

  • - Electronic power steering (EPS)
  • - Four-wheel hydraulic disc brakes
  • - 12-inch black alloy wheels
  • - 25-inch six-play Innova tyres
  • - The UFORCE 600 EPS comes with a rear limited-slip differential to help prevent tearing up your turf

UFORCE 600 EPS

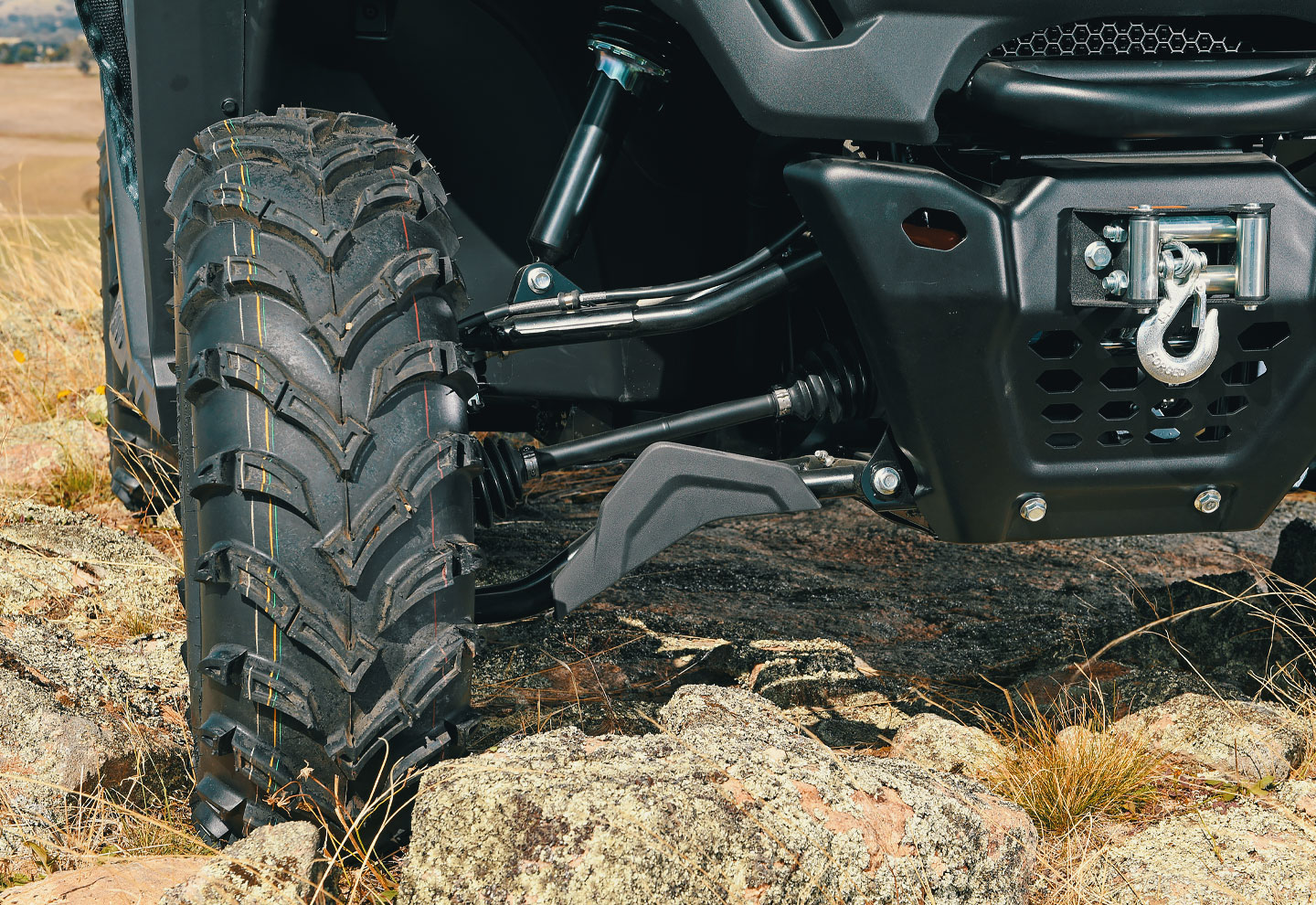

SUSPENSION

  • - Double A-Arm independent suspension both front and rear
  • - Coil spring shock absorbers with oil dampening and five-position preload adjustment
  • - 270mm ground clearance

UFORCE 600 EPS
ENGINE

  • - 41hp, 580cc, liquid-cooled, EFI, single-cylinder four-stroke engine
  • - Two drive modes, normal and work
  • - Tough Canadian CVTech transmission
  • - Electronic hill descent control
  • - A large 35-litre fuel tank capacity

UFORCE 600 EPS
SAFETY

  • - ROPS-certified roll cage
  • - Seat belts
  • - Occupant side nets
  • - CFMOTO roof kit
  • - Full lights package including indicators, horn and side mirrors

UFORCE 600 EPS SPECIFICATIONS

UFORCE 600 EPS SPECIFICATIONS


ENGINE & TRANSMISSION

Engine type:Single-cylinder, liquid-cooled four-stroke
Displacement:580cc
Maximum power:41hp (31kW) at 6250rpm
Maximum torque:62Nm at 4750rpm
Fuel system:Bosch EFI
Transmission:Canadian CVTech
Drive:H-L-N-R-Park
Driver assistance:Electronic hill descent control
Drive modes:Two drive modes: Normal/Work
4WD:2WD/4WD with locking front differential
Rear differential:Limited slip
Steering:Power


SUSPENSION & BRAKES

Front suspension:Double A-Arm, independent
Rear suspension:Double A-Arm, independent
Shock absorbers:Coil spring with oil dampening and five-position preload
Brakes:Four-wheel hydraulic disc brakes


WHEELS & TYRES

Wheels:12-inch alloy
Tyres:25-inch six-ply Innova


DIMENSIONS

L x W x H:2820 x 1470 x 1950mm
Wheelbase:1950mm
Ground clearance:270mm
Tray dimensions (W x D x H):1300 x 870 x 275mm
Dry weight:570kg


LOAD

Towing capacity:680kg
Carrying capacity:250kg
Roll cage:ROPS certified
Persons:Two
Fuel capacity:35lt


HIGHLIGHTS

Roof kit:Yes
Winch:Yes
Drive:Choice of two power modes
Downhill descent control:Yes
Limited-slip differential:Yes
Bench seat:Yes
Storage:96 litres, in cabin


OTHER

Colour:Titanium Grey
Warranty:Three years
Tow package, horn, lights and side mirrors:Yes

UFORCE 600 EPS ACCESSORIES

$499.00
5ASV-803100-6000 - U6 SNORKEL KIT
5ASV-803100-6000 - U6 SNORKEL KIT
$399.00
5AS#-801100-6000 - FRONT PROTECTOR BAR UFORCE 600
5AS#-801100-6000 - FRONT PROTECTOR BAR UFORCE 600
$349.00
5AS#-801200-6000 - REAR PROTECTOR BAR UFORCE 600
5AS#-801200-6000 - REAR PROTECTOR BAR UFORCE 600
$399.00
5AS#-801300-6000 - SIDE PROTECTOR BAR UFORCE 600
5AS#-801300-6000 - SIDE PROTECTOR BAR UFORCE 600
$999.00
5ASV-807100-6000 - UFORCE 600 LEFT SIDE FULL DOOR
5ASV-807100-6000 - UFORCE 600 LEFT SIDE FULL DOOR
$999.00
5ASV-807200-6000 - UFORCE 600 RIGHT SIDE FULL DOOR
5ASV-807200-6000 - UFORCE 600 RIGHT SIDE FULL DOOR

UFORCE 600 EPS ACCESSORIES

$699.00
5ASV-806100-6000 - CARGO BOX, UFORCE 600
5ASV-806100-6000 - CARGO BOX, UFORCE 600
$699.00
5ASV-805100-6000 - FULL WINDSHIELD ASSY (POLY), UFORCE 600
5ASV-805100-6000 - FULL WINDSHIELD ASSY (POLY), UFORCE 600
$409.00
5ASV-805300-6000 - HALF WINDSHIELD ASSY (POLY), UFORCE 600
5ASV-805300-6000 - HALF WINDSHIELD ASSY (POLY), UFORCE 600
$499.00
5ASV-805200-6000 - REAR WINDSHIELD ASSY (POLY), UFORCE 600
5ASV-805200-6000 - REAR WINDSHIELD ASSY (POLY), UFORCE 600
$599.01
5ASV-806200-6000 - REAR CARRY RACK ASSY, UFORCE 600
5ASV-806200-6000 - REAR CARRY RACK ASSY, UFORCE 600
$149.00
852114-00001 - FLEXGRIP TOOL SUPPORT
852114-00001 - FLEXGRIP TOOL SUPPORT

UFORCE 600 EPS ACCESSORIES

$94.50
9DS#-809000-6000 - \u201CCF Connect\u201D Clamp
9DS#-809000-6000 - “CF Connect” Clamp
$299.00
5ASV-805600-6000 - DRIVER HEATED SEAT ASSY, UFORCE 600
5ASV-805600-6000 - DRIVER HEATED SEAT ASSY, UFORCE 600
$349.00
5ASV-805700-6000 - PASSENGER HEATED SEAT ASSY, UFORCE 600
5ASV-805700-6000 - PASSENGER HEATED SEAT ASSY, UFORCE 600
$157.50
5BWV-805600-5000 - CENTER MIRROR ASSY
5BWV-805600-5000 - CENTER MIRROR ASSY

UFORCE 600 EPS

CFMOTO

A global manufacturing powerhouse, CFMOTO has been producing quality powersports products for more than 30 years and is the largest exporter of ATVs and UTVs in China. The company's core values are continual improvement, innovation and quality - values that permeate throughout its global distribution network in Europe, north and south America, Canada, Africa and China.
UFORCE 600 EPS
*National ride away prices are inclusive of freight to your local dealer and dealer pre-delivery charges. Excludes Regional WA dealers.
