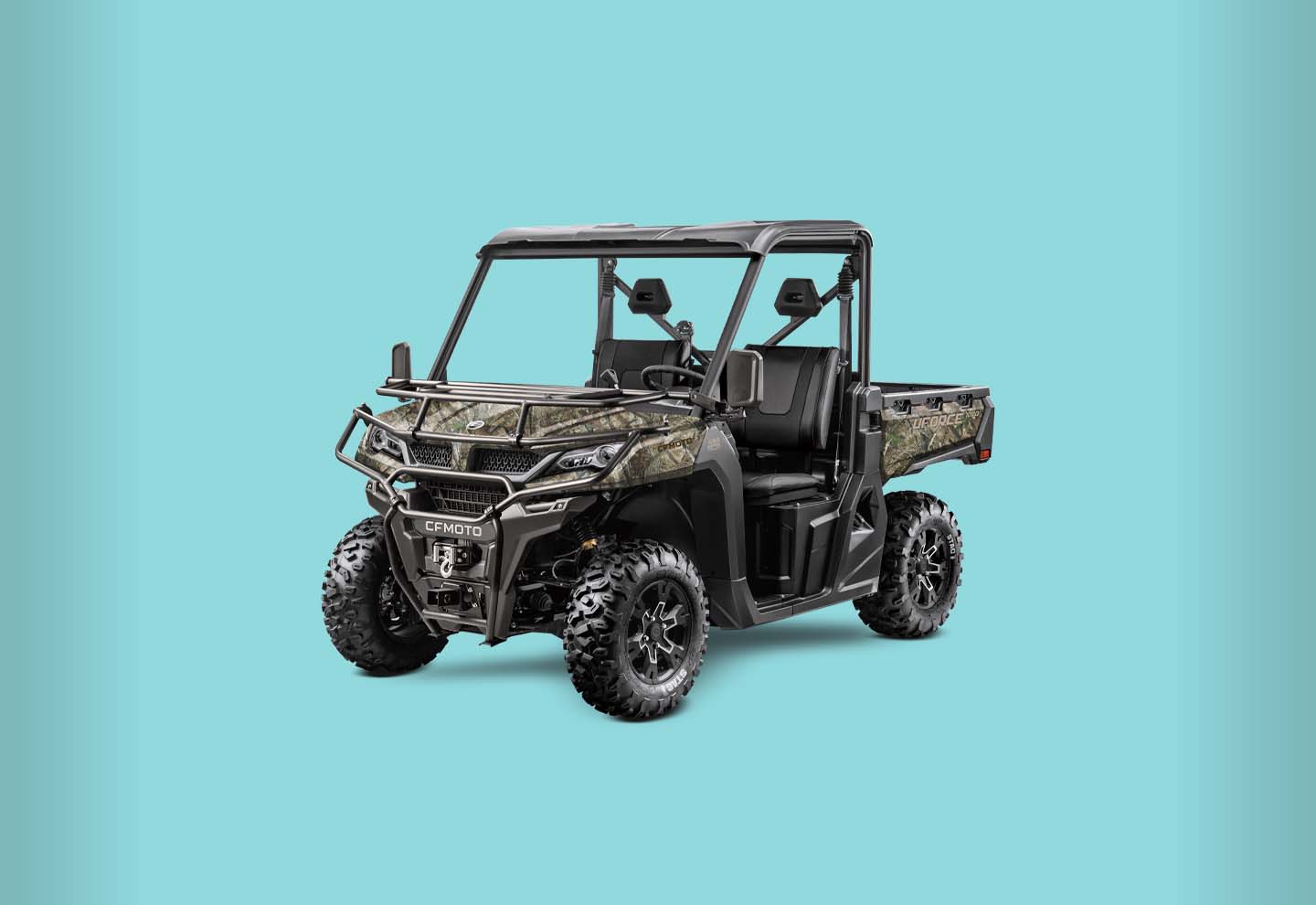

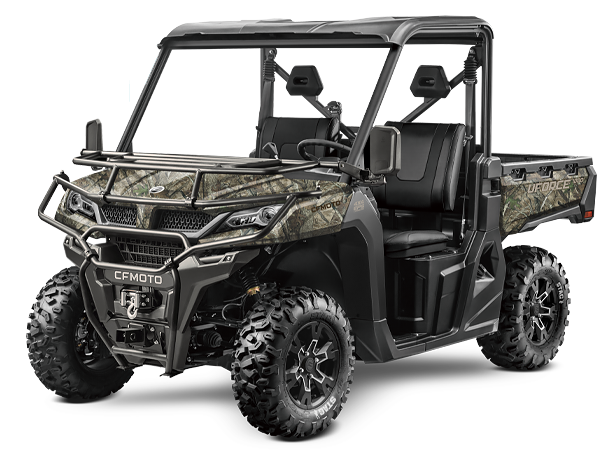

TAKE ON THE GREAT OUTDOORS

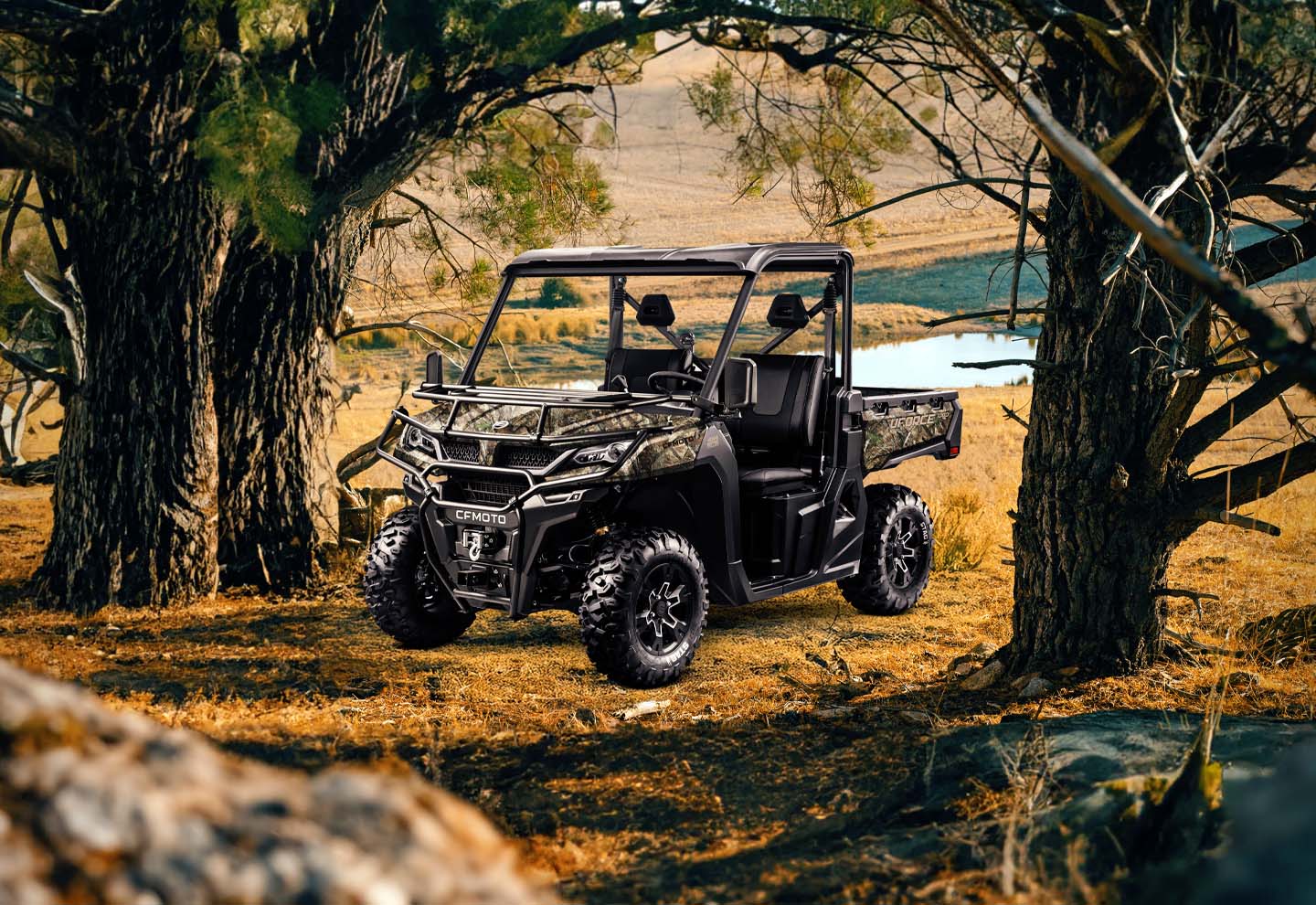

More than just work, the UFORCE 1000 HUNT is equipped with everything the UFORCE 1000 EPS has plus added HUNT features. These include UV-resistant camouflage wrap, a front protector bar, bonnet rack, a 3500lb synthetic rope electric winch and alloy A-arm guards for added off road protection.
The All 4 Adventure tick of approval. The UFORCE 1000 HUNT has been taken to some of the most rugged and remote parts of Australia in the latest series of All 4 Adventure. To find out how it went simply tune in and see what the team got up to!
Model footage and images from All 4 Adventure. Model shown with optional accessories.
TAKE ON THE GREAT OUTDOORS
More than just work, the UFORCE 1000 HUNT is equipped with everything the UFORCE 1000 EPS has plus added HUNT features. These include UV-resistant camouflage wrap, a front protector bar, bonnet rack, a 3500lb synthetic rope electric winch and alloy A-arm guards for added off road protection.
The All 4 Adventure tick of approval. The UFORCE 1000 HUNT has been taken to some of the most rugged and remote parts of Australia in the latest series of All 4 Adventure. To find out how it went simply tune in and see what the team got up to!
*Shown with optional accessories in video.
REAL MUSCLE
At its heart the UFORCE 1000 HUNT is powered by a 71hp (53kW), 963cc, fuel-injected, liquid-cooled, four-stroke V-twin engine. The power is tamed by a Bosch 'fly by wire' throttle providing ultimate control during both high- speed and low-speed manoeuvres.
READY FOR YOUR WORLD
Automotive-inspired cabin comfortably transports three adults. Open-style dash, foldable centre console and the underseat area delivers an incredible combined 75.5 litres of storage.
HAUL MORE, TOW MORE
[/h2]
The gas-assisted dumping cargo-bed carries 350kg, is wide enough to accommodate a standard pallet and features integrated tie-down points. A towing package is fitted as standard with an 800kg capacity.
COVER SOME SERIOUS GROUND
Equipped with a rear limited-slip differential, which activates a new turf mode to avoid tearing up the ground. When loss of traction occurs on one rear wheel, the other will engage to minimise loss of forward momentum. Electronic power steering (EPS) narrows the UFORCE 1000 EPS turning radius to 8.2m; the tightest in the range.
SUPPORT YOU
CAN TRUST
Trusted by more than 50,000 Aussie farmers, CFMOTO is a brand you can rely on. The UFORCE 1000 HUNT is backed by a two-year warranty and supported by an 80-plus national dealer network to keep you going 24/7.
MODEL
HIGHLIGHTS
- 71hp (53kW), 963cc, fuel-injected, liquid-cooled, four-stroke V-twin engine
- Bosch electronic fuel injection
- CVT transmission
- Electronic power steering (EPS)
- Selectable 2WD/4WD
- Push button-locking front differential
- Rear limited-slip differential (LSD)
- Dual A-Arm independent suspension
- Four-wheel hydraulic disc brakes
- 14-inch alloy wheels
- 27-inch eight-ply CST tyres
- Three-person bench seat
- Driver seat adjustability
- 75.5 litres of in-cabin storage
- Large 40-litre fuel tank
- Large gas-assisted tipping cargo tray
- CFMOTO roof kit
- UV-resistant camouflage wrap
- A front protector bar
- Bonnet rack
- A 3500lb synthetic rope winch
- Alloy A-Arm guards
- 800kg towing capacity
- 350 kg rear tray carrying capacity
- Tow package, indicators, horn and mirrors
- Two-year warranty

REAL MUSCLE
At its heart the UFORCE 1000 HUNT is powered by a CFMOTO 71hp (53kW), 963cc, fuel-injected, liquid-cooled, four-stroke V-twin engine. The most powerful CFMOTO UTV yet. The power is tamed by a Bosch 'fly by wire' throttle with the choice of two drive modes – Normal or Work – providing ultimate control during both high- and low-speed manoeuvres.
* Model shown with optional accessories.

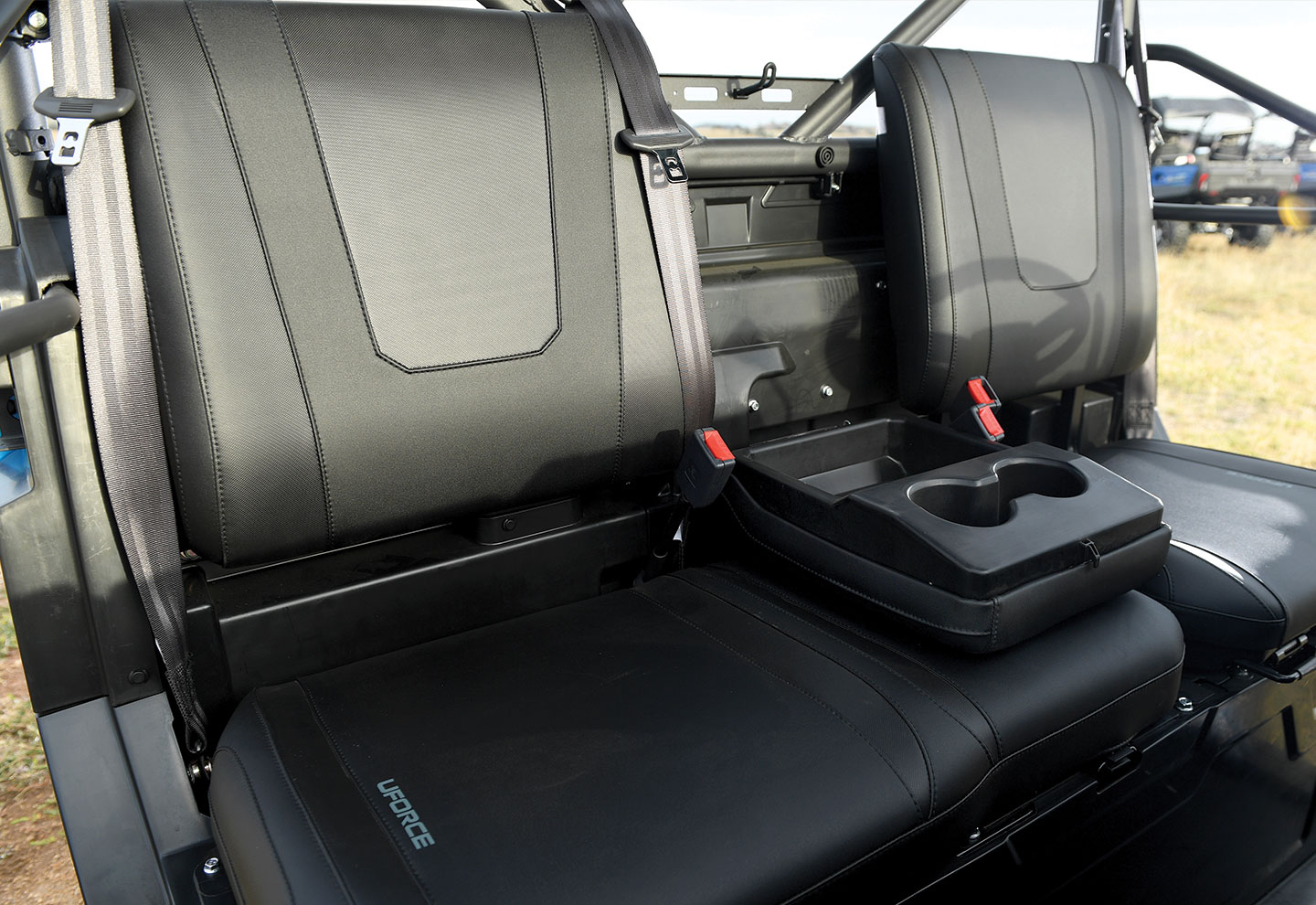

READY FOR YOUR WORLD
Automotive-inspired cabin comfortably transports three adults.
Open style dash, foldable centre console and underseat area delivers an incredible combined 75.5 litres of storage.

COVER SOME SERIOUS GROUND
Equipped with a rear limited-slip differential, which activates a new turf mode to avoid tearing up the ground. When loss of traction occurs on one rear wheel, the other will engage to minimise loss of forward momentum.
Electronic power steering narrows the UFORCE 1000 turning radius to 8.2m; the tightest in the range.
* Model shown with optional accessories.

HAUL MORE, TOW MORE
The gas-assisted dumping cargo-bed carries 350kg, is wide enough to accommodate a standard pallet and features integrated tie-down points.
A tow package is fitted as standard with a large 800kg towing capacity.
* Model shown with optional accessories.

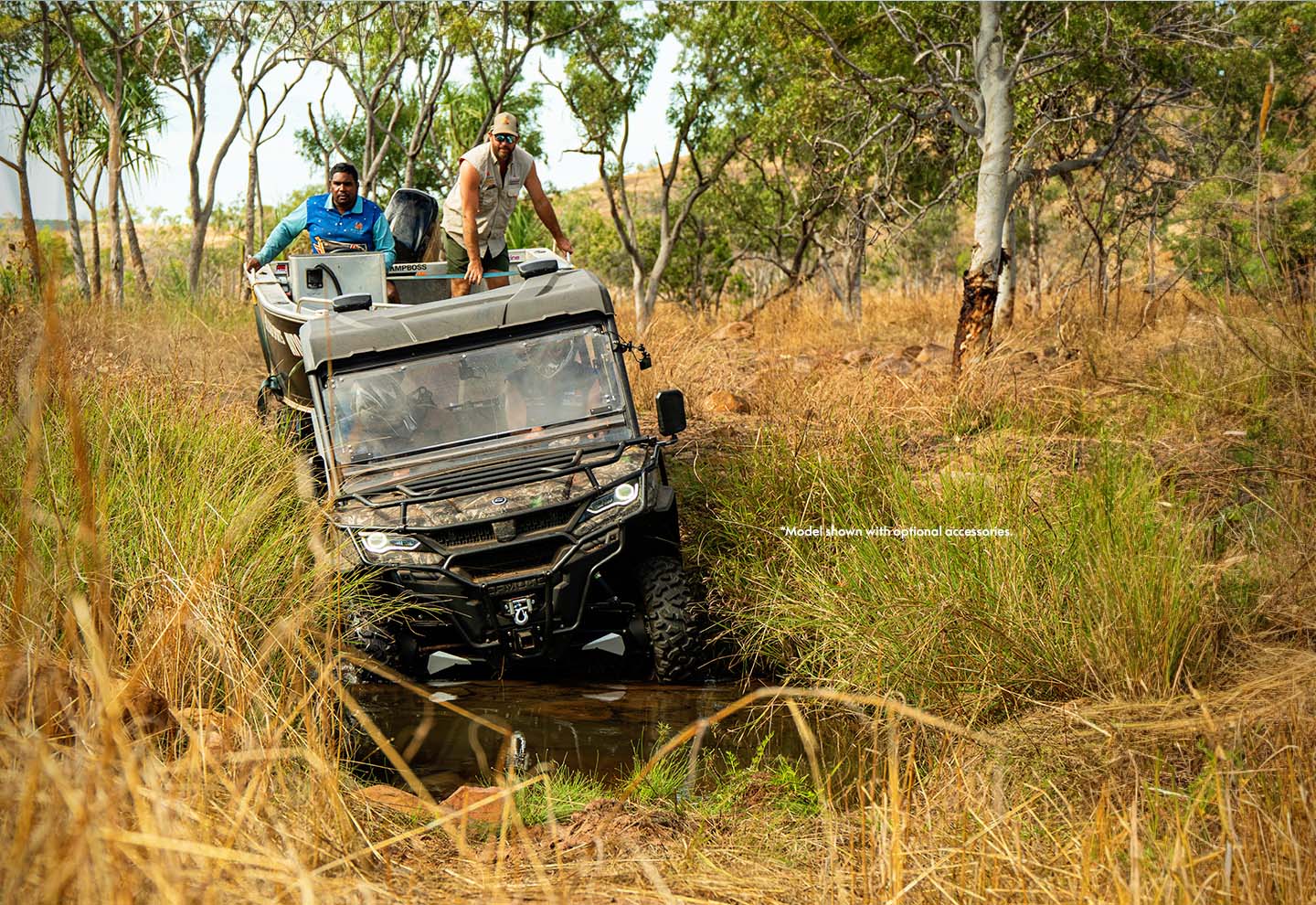

ADVENTURE ON THE BOX
CFMOTO has joined forces with All 4 Adventure, Australia's No. 1 adventure, fishing and 4x4 show, with the UFORCE 1000 HUNT to take centre stage during season 14 and 15. Catch all the action on Channel 10.
Model footage and images from All 4 Adventure. Model shown with optional accessories.

SUPPORT YOU
CAN TRUST
Trusted by more than 50,000 Aussie farmers, CFMOTO is a brand you can rely on. The UFORCE 1000 HUNT is backed by a two-year warranty and supported by an 80-plus national dealer network to keep you going 24/7.
SPECIFICATIONS
SPECIFICATIONS
ENGINE & TRANSMISSION| Engine type: | Liquid-cooled, fuel-injected, four-stroke V-twin
| | Displacement: | 963cc
| | Maximum power: | 71hp (53kW) at 7,000rpm
| | Maximum torque: | 74Nm at 6,500rpm
| | Fuel system: | Bosch EFI with 'fly by wire'
| | Transmission: | CVT
| | Drive: | H-L-N-R-Park + Handbrake
| | Driver assistance: | Electronic hill descent control
| | Drive modes: | Two: Normal or Work
| | 4WD: | 2WD/4WD with locking front differential
| | Rear differential: | Limited slip
| | Steering: | Power
|
|
SUSPENSION & BRAKES| Suspension: | Double A-Arm, independent
| | Brakes: | Four-wheel hydraulic disc brakes
| WHEELS & TYRES| Wheels: | 14-inch alloy
| | Tyres: | 27-inch eight-ply CST Stag
|
|
|
DIMENSIONS| L x W x H: | 2945 x 1615 x 1850mm
| | Wheelbase: | 2050mm
| | Ground clearance: | 280mm
| | Wet weight: | 730kg
| | Cargo tray dimensions: | 1340 x 863 x 293mm
| LOAD| Towing capacity: | 800kg
| | Carrying capacity: | 350kg
| | Roll cage: | ROPS certified
| | Persons: | Three
| | Fuel capacity: | 40lt
|
|
|
HIGHLIGHTS| Front HUNTER bar work: | Yes
| | 3500lb synthetic rope winch: | Yes
| | Alloy A-Arm guards: | Yes
| | Winch: | Yes
| | Roof Kit: | Yes
| | UV Camo colour scheme: | Yes
| | Drive: | Choice of two power modes
| | Downhill descent control: | Yes
| | Limited-slip differential: | Yes
| | Bench Seat: | Yes
| | Storage: | 75.5 litres, in cabin
|
|
OTHER| Colour: | Camouflage
| | Warranty: | Two years
| | Tow pack, horn, lights and mirrors: | Yes
|
|
GALLERY
COLOURS
COLOURS

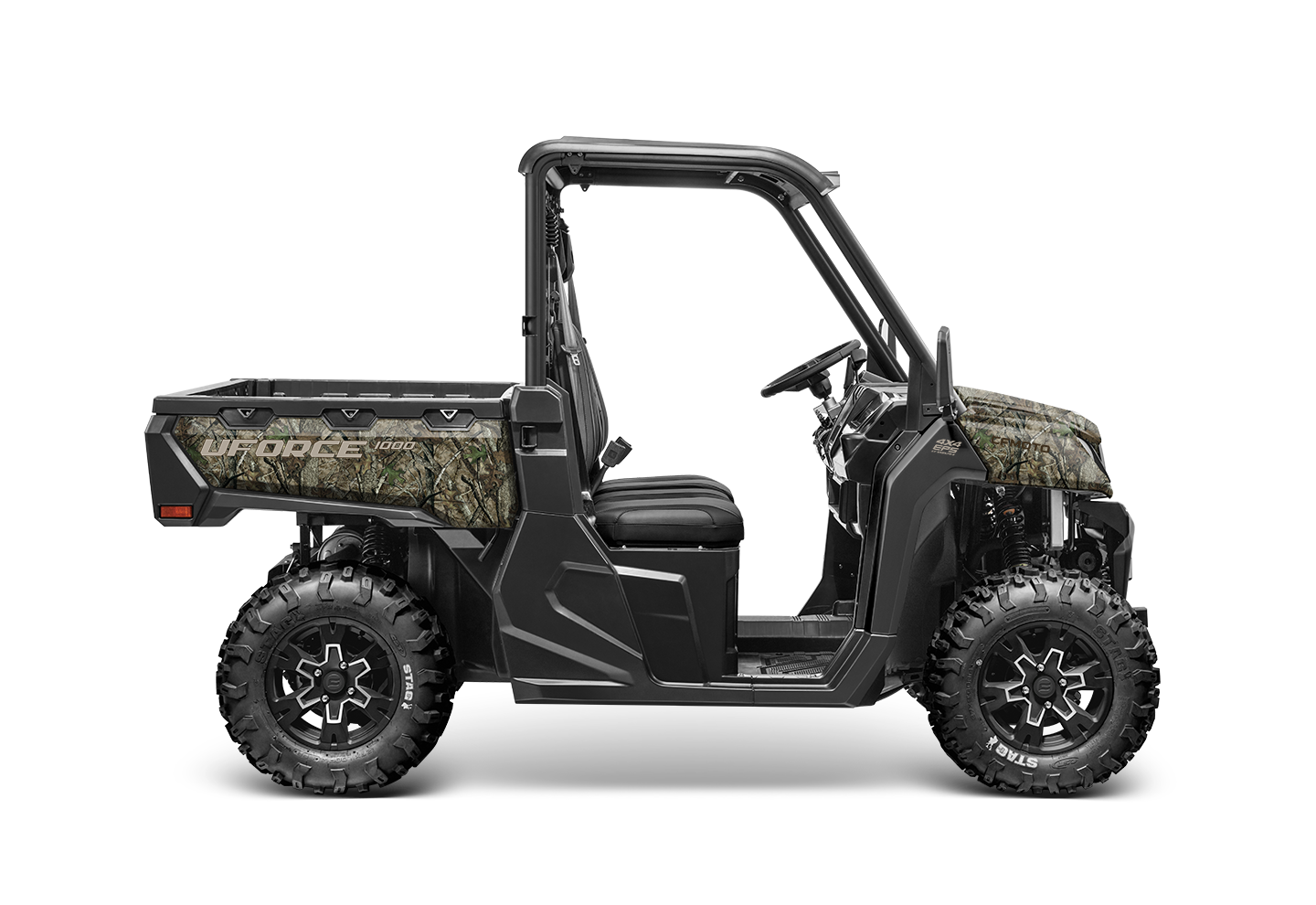

True Timber Camo
ACCESSORIES

5HY0-809100 - QUICK RELEASE ASSY

5HYV-803000-1K00 - INSULATION KIT UFORCE 1000

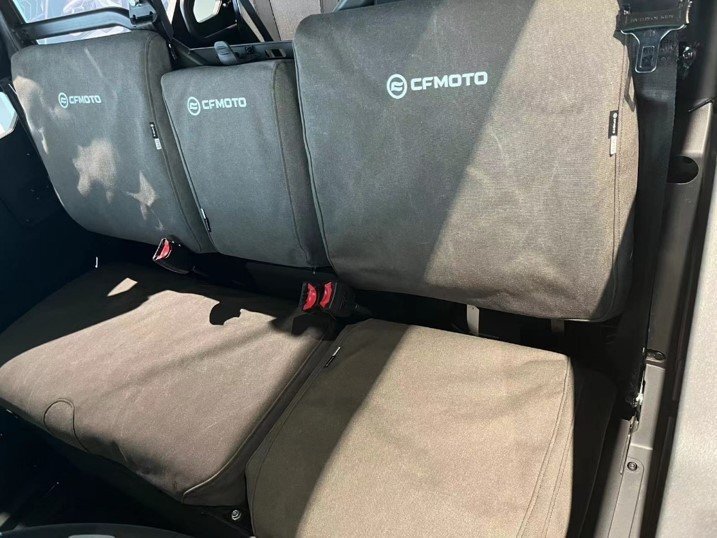

5HYV-809820-1000 - CFMOTO UFORCE 1000 SEAT COVER

5HYV-800100-1000 - UFORCE 600 / 1000 ORB LIGHTING ASSY

5HY0-805100-1000 - UFORCE 1000 HEATED DRIVERS SEAT

5HY0-805200-1000 - UFORCE 1000 HEATED PASSENGER SEAT
ACCESSORIES

5HYV-806510-6000 - CFMOTO DOOR PANEL MESH POCKET

5HYV-809200-1000 - OVERHEAD STORAGE BAG

0JYA-111130-100 - UFORCE 1000 UNIFILTER AIR CLEANER

852114-00001 - FLEXGRIP TOOL SUPPORT

5HY#-803000-1200 - UFORCE 1000 SNORKEL KIT

5HY#-801200-1000 - UFORCE 1000 REAR BUMPER ASSY
ACCESSORIES

5HY#-801300-1000 - UFORCE 1000 NERF BARS ASSEMBLY

5HY0-802000-10000 - UFORCE 1000 REAR PROTECTOR & SIDE PROTECTOR BAR KIT

5HYR-801000-1K00 - CFMOTO UFORCE 1000 ROOF LINER

5HYV-801000-1000 - UFORCE 1000 AUDIO SYSTEM ASSY STAGE 1

5HYV-802000-1000 - UFORCE 1000 AUDIO SYSTEM ASSY STAGE 2

5HYV-803000-1000 - U10 REAR CARGO CAGE
ACCESSORIES

5HYV-805600-1K01 - UFORCE WIPER SYSTEM

5HYV-805800-1000 - UFORCE 1000 PLASTIC SKID PLATE ASSY

5HYV-805800-1K02 - UFORCE 1000 GLASS FLIP OUT WINDSHIELD

5HYV-807100-1000 - UFORCE 1000 LH FULL DOOR - BLACK

5HYV-807200-1000 - UFORCE 1000 RH FULL DOOR - BLACK

5HYV-807300-1000 - UFORCE 1000 FULL POWER DOOR ASSEMBLY LEFT
ACCESSORIES

5HYV-807400-1000 - UFORCE 1000 FULL POWER DOOR ASSEMBLY RIGHT

5ASV-800200-5000 - UFORCE 600 / 1000 BUS BAR KIT

5HYV-806100-1000 - LARGE STORAGE BOX U10 PRO

5HYV-806200-1000 - REAR RACK ASSY U10 PRO

5HYV-807500-1000 - UFORCE 1000 MY24> LH&RH HALF DOOR ASSY

5SYV-805100-1000 - UFORCE 1000 FULL WINDSHIELD ASSY (POLY)
ACCESSORIES

5SYV-805200-1002 - UFORCE 1000 / 1000XL REAR WINDSHIELD ASSY

5SYV-805300-1000 - UFORCE 1000 HALF WINDSHIELD (POLY)

5HYV-801500-1000 - REMOTE CONTROL, WINCH ASSY

GCV-1600A-AU - ATV TRAILER SINGLE AXLE TIPPING

5HY0-805200 - UFORCE 1000 ALUMINIUM SKID PLATE ASSY

ACC-CFM-U10FILTERKIT - UFORCE 1000 UNIFILTER KIT
ACCESSORIES

CFK46897-1 - SKID PLATE SET UFORCE 1000 2019>

FWS-CF-UF1000-003-70 - CFMOTO UFORCE 1000 POLY FLIP WINDSHIELD UFORCE 1000 / U1000XL MY23>

GCU-1600-AU - ATV TRAILER DUAL AXLE

7020-800750 - SYNTHETIC WINCH ROPE

9DS#-809000-6000 - “CF Connect” Clamp (Pair)

5BWV-805600-5000 - UFORCE / ZFORCE CENTER MIRROR ASSY
ACCESSORIES

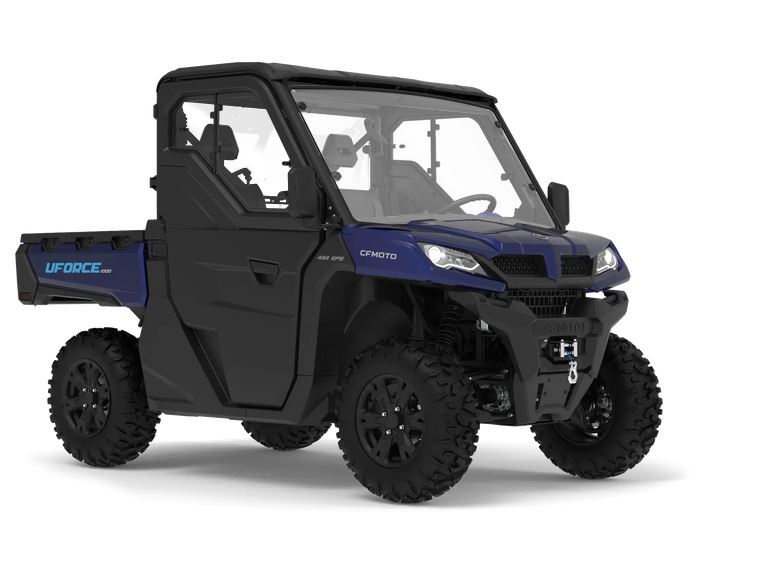

ACC-CFM-U1FPC-KIT - UFORCE 1000EPS FULL POLY CAB

852114-00006 - ADJUSTABLE TOOL SUPPORT

ACC-CFM-4W1-KIT - CFMOTO CRAFTED OFFROAD OIL CHANGE KIT 1

TFY047 - CRAFTED 10W40 SN FULL SYN 1L ENGINE OIL
