CFORCE 625 EPS

STRONGER, SMOOTHER, SMARTER

CFMOTO’s largest capacity, single-cylinder ATV, the CFORCE 625 EPS has undergone a series of technical updates and refinements for MY23 aimed at taking the already impressive package to new heights.

Now with premium moulded plastic carrier racks.

  • *Overseas model shown without Quadbar OPD installed.


  • CFORCE 625 EPS

    STRONGER, SMOOTHER, SMARTER


    CFMOTO’s largest capacity, single-cylinder ATV, the CFORCE 625 EPS has undergone a series of technical updates and refinements for MY23 aimed at taking the already impressive package to new heights.

    Now with premium moulded plastic carrier racks.

    *Overseas models shown without Quadbar OPD installed.



    GO BIG

    CFMOTO’s engineers left no stone unturned when it came to reviewing the robust 580cc single-cylinder, liquid-cooled, fuel-injected engine in their quest for superior power and unmatched reliability.

    The new cylinder head features revised intake and exhaust channels accompanied by a new combustion chamber design, optimised coolant channels, and camshaft profile. Complemented by larger-diameter intake and exhaust valves, resulting in a significant increase in engine performance.

    The piston has been upgraded to a forged type (previously cast) for greater strength with reduced weight and vibration. A Diamond-Like Coating (DLC) piston ring also enhances the engine’s durability.

    Larger intake and exhaust tube diameters further increase airflow helping boost maximum power output to 45hp @ 6,500rpm (from 41hp @ 6,750rpm) and maximum torque to 51Nm @ 6,000rpm (from 49Nm @ 5.250rpm).

    ELECTRONIC THROTTLE

    Having more power on tap is great, but how that power is delivered is arguably more important! That’s why the MY23 CFORCE 625 EPS has been equipped with the latest UP6.0 ECU platform. Far more powerful than before, the 112-pin ECU unit (48-pin previously) delivers improved throttle connection, smoother control, and increased comfort.

    The throttle lever and throttle body have also been upgraded from mechanical to electronic (ride-by-wire) units as found on high-end sports bikes and enable the choice between two switchable drive modes, WORK and NORMAL.

    612KG TOWING CAPACITY

    Aussie farmers will certainly appreciate the additional power and smoother ride, but they’ll really love the 612kg towing capacity (increased from 350kg) for tackling the bigger jobs.

    SMOOTH RIDE

    The chassis wasn’t forgotten either; CFMOTO engineers made several modifications to optimise the engine mounting to reduce noise, vibration, and harshness.

    Dual A-arm suspension delivers comfort and confidence in rough terrain, a class-leading turning circle of 7.25m guarantees easy manoeuvring and four-wheel hydraulic disc brakes provide some serious stopping power.

    NEW ATV LEGISLATION

    Mojo Motorcycles, the Australian importer of CFMOTO, has introduced an updated range of quad bikes to meet stage two requirements of the Consumer Goods (Quad Bike) Safety Standard. If the model is advertised with the ‘Quad Bike Safety Standard Compliant’ logo, it is compliant with the requirements of stage two and will be supplied with a Quadbar OPD. The price shown on this model page is the ride away price for this quad bike fitted with a Quadbar OPD. The Quadbar OPD is installed by your CFMOTO dealer during pre-delivery.

    For more information on Quadbar OPDs, visit at www.quadbar.com

    Overseas model shown without Quadbar OPD installed. For more information on the new ATV legislation, visit our ATV legislation page in the menu or speak to your local dealer.

    TILT ANGLE

    To comply with stage two requirements of the Consumer Goods Quad Bike Safety Standard all CFMOTO quad bikes have been tilt angle tested. The minimum standard to pass the lateral stability tilt angle test is 28.81 degrees. The CFORCE 625 EPS exceeds the minimum lateral stability tilt angle test with a result of 31.1 degrees.

    SUPPORT
    YOU CAN TRUST

    Trusted by more than 50,000 Aussie farmers, CFMOTO is a brand you can rely on. Backed by a two-year warranty on all ATV and UTV models and supported by an 80-plus national dealer network to keep you going 24/7.

    MODEL
    HIGHLIGHTS

    - 45hp (33kW), 580cc, single-cylinder four-stroke engine
    - Two drive modes, WORK or NORMAL
    - Bosch electronic fuel injection
    - CVT transmission
    - Engine braking
    - Selectable 2WD/4WD with locking front and rear differential
    - Electronic power steering (EPS)
    - Four-wheel hydraulic disc brakes
    - Double A-Arm independent suspension
    - 3000lb winch
    - 12-inch alloy wheels
    - 25-inch six-ply CST Tyres
    - Handguards
    - 5-inch display
    - 612kg towing capacity
    - 35kg front/70kg rear carrier rack capacity
    - Tow package, indicators, horn and mirrors
    - Two-year warranty
    - Available in Camouflage or Velocity Grey

    CFORCE 625 EPS

    GO BIG

    CFMOTO’s engineers left no stone unturned when it came to reviewing the robust 580cc single-cylinder, liquid-cooled, fuel-injected engine in their quest for superior power and unmatched reliability.

    The new cylinder head features revised intake and exhaust channels accompanied by a new combustion chamber design, optimised coolant channels, and camshaft profile. Complemented by larger-diameter intake and exhaust valves, resulting in a significant increase in engine performance.


    CFORCE 625 EPS

    MORE POWER

    The piston has been upgraded to a forged type (previously cast) for greater strength with reduced weight and vibration. A Diamond-Like Coating (DLC) piston ring also enhances the engine’s durability.

    Larger intake and exhaust tube diameters further increase airflow helping boost maximum power output to 45hp @ 6,500rpm (from 41hp @ 6,750rpm) and maximum torque to 51Nm @ 6,000rpm (from 49Nm @ 5.250rpm).

    *Overseas models shown.

    CFORCE 625 EPS

    ELECTRONIC THROTTLE

    Having more power on tap is great, but how that power is delivered is arguably more important! That’s why the MY23 CFORCE 625 EPS has been equipped with the latest UP6.0 ECU platform. Far more powerful than before, the 112-pin ECU unit (48-pin previously) delivers improved throttle connection, smoother control, and increased comfort.

    The throttle lever and throttle body have also been upgraded from mechanical to electronic (ride-by-wire) units as found on high-end sports bikes and enable the choice between two switchable drive modes, WORK and NORMAL.

    CFORCE 625 EPS

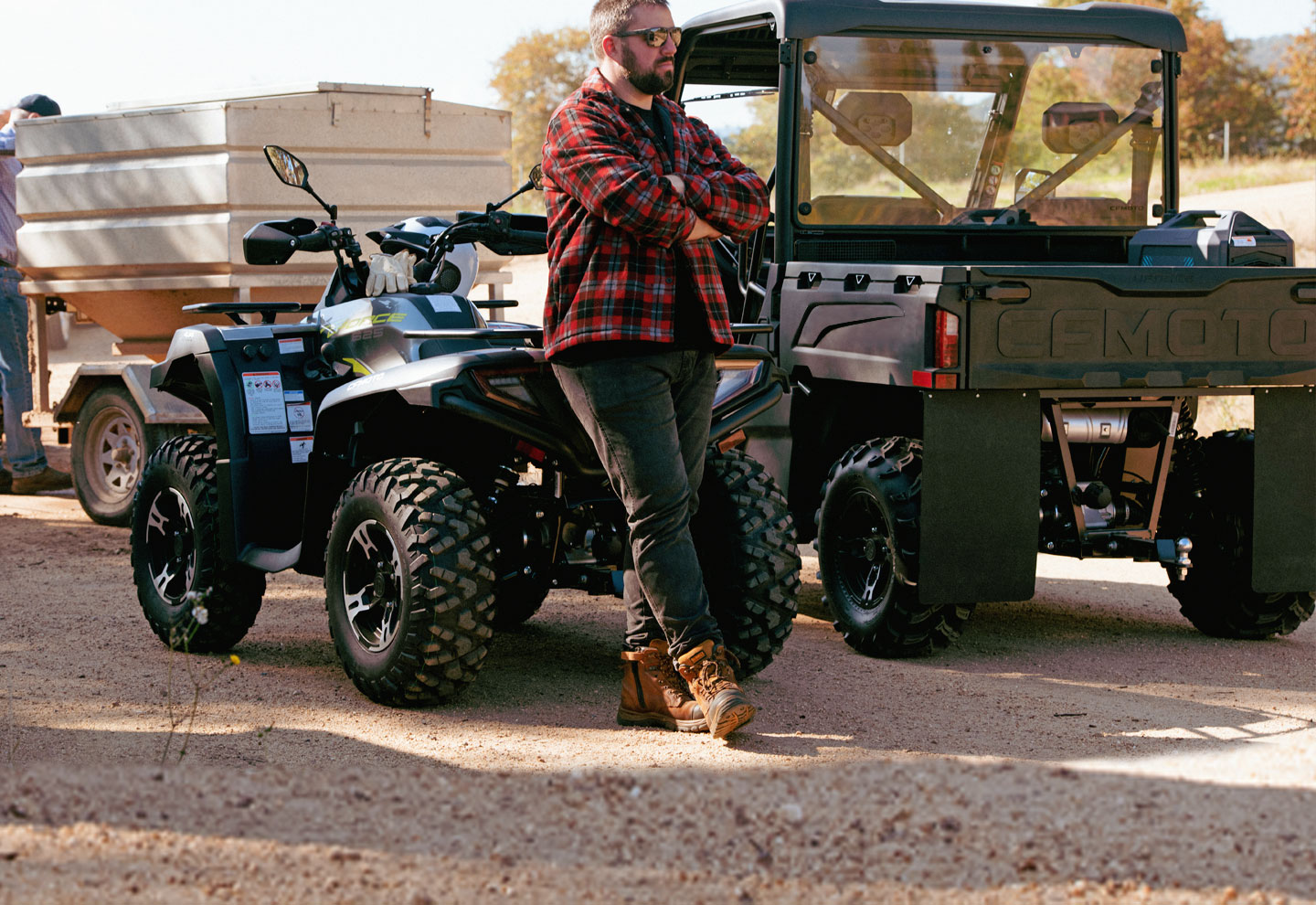

    612KG TOWING CAPACITY

    Aussie farmers will certainly appreciate the additional power and smoother ride, but they’ll really love the 612kg towing capacity (increased from 350kg) for tackling the bigger jobs.

    CFORCE 625 EPS

    SMOOTH RIDE

    The chassis wasn’t forgotten either; CFMOTO engineers made several modifications to optimise the engine mounting to reduce noise, vibration, and harshness.

    Dual A-arm suspension delivers comfort and confidence in rough terrain, a class-leading turning circle of 7.25m guarantees easy manoeuvring and four-wheel hydraulic disc brakes provide some serious stopping power.


    CFORCE 625 EPS

    NEW ATV LEGISLATION

    Mojo Motorcycles, the Australian importer of CFMOTO, has introduced an updated range of quad bikes to meet stage 2 requirements of the Consumer Goods (Quad Bike) Safety Standard. If the model is advertised with the ‘Quad Bike Safety Standard Compliant’ logo, it is compliant with the requirements of stage two and will be supplied with a Quadbar OPD. The price shown on this model page is the ride away price for this quad bike fitted with a Quadbar OPD. The Quadbar OPD is installed by your CFMOTO Dealer during pre-delivery. For more information on Quadbar OPDs, visit www.quadbar.com.

  • Overseas model shown without Quadbar OPD installed. For more information on the new ATV legislation, head to our ATV legislation page in the menu or speak to your local dealer.

  • CFORCE 625 EPS

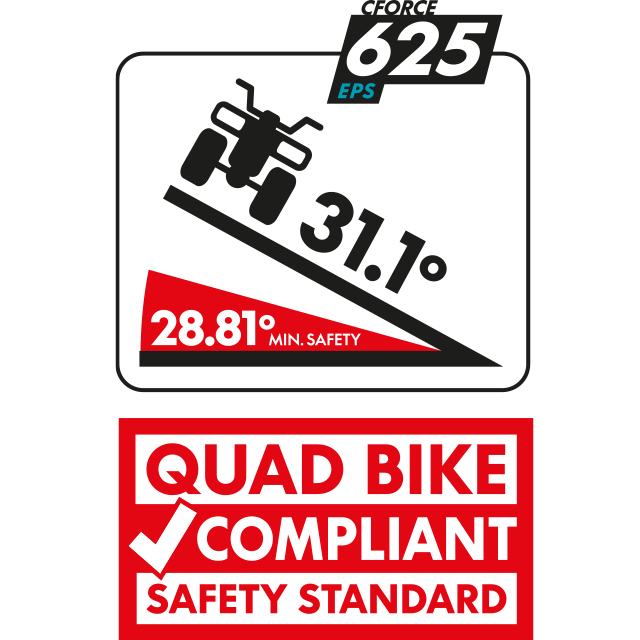

    TILT ANGLE

    To comply with stage two requirements of the Consumer Goods Quad Bike Safety Standard all CFMOTO quad bikes have been tilt angle tested. The minimum standard to pass the lateral stability tilt angle test is 28.81 degrees. The CFORCE 625 EPS exceeds the minimum lateral stability tilt angle test with a result of 31.1 degrees.

    CFORCE 625 EPS

    SUPPORT YOU
    CAN TRUST

    Trusted by more than 50,000 Aussie farmers, CFMOTO is a brand you can rely on. The CFORCE 625 is backed by a two-year warranty and supported by an 80-plus national dealer network to keep you going 24/7.

    CFORCE 625 EPS SPECIFICATIONS

    CFORCE 625 EPS SPECIFICATIONS


    ENGINE & TRANSMISSION

    Engine type:Single-cylinder, liquid cooled four-stroke
    Displacement:580cc
    Maximum power:45hp (33kW) @ 6,500rpm
    Maximum torque:51Nm @ 6,000rpm
    Fuel system:Bosch EFI, ride-by-wire
    Transmission:CVT with engine braking
    Drive:H-L-N-R-Park

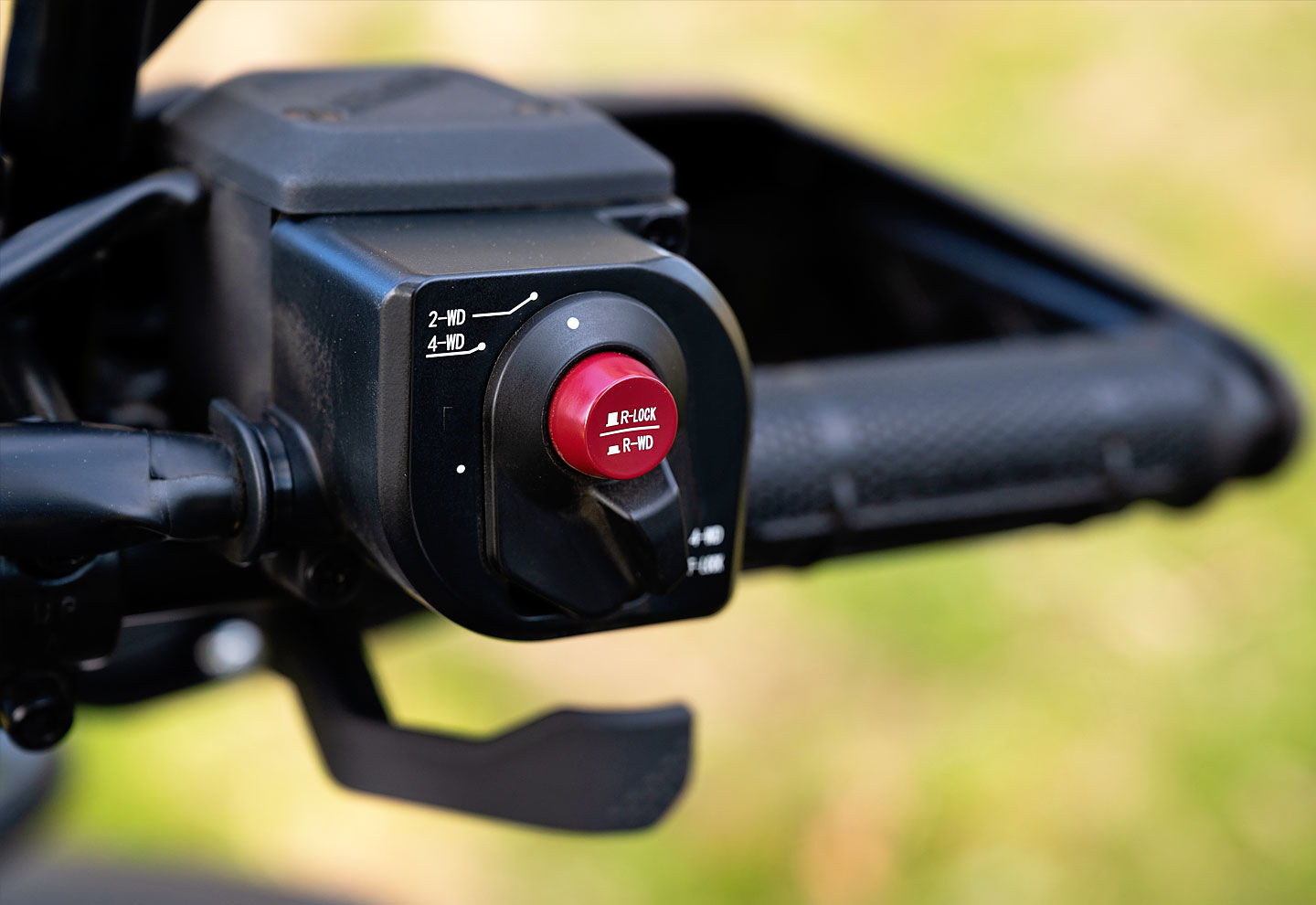

    4WD:2WD/4WD with locking front and rear differential
    Rear differential:Open
    Steering:Power


    SUSPENSION & BRAKES

    Suspension:Double A-arm, independent
    Brakes:Four-wheel hydraulic disc brakes


    WHEELS & TYRES

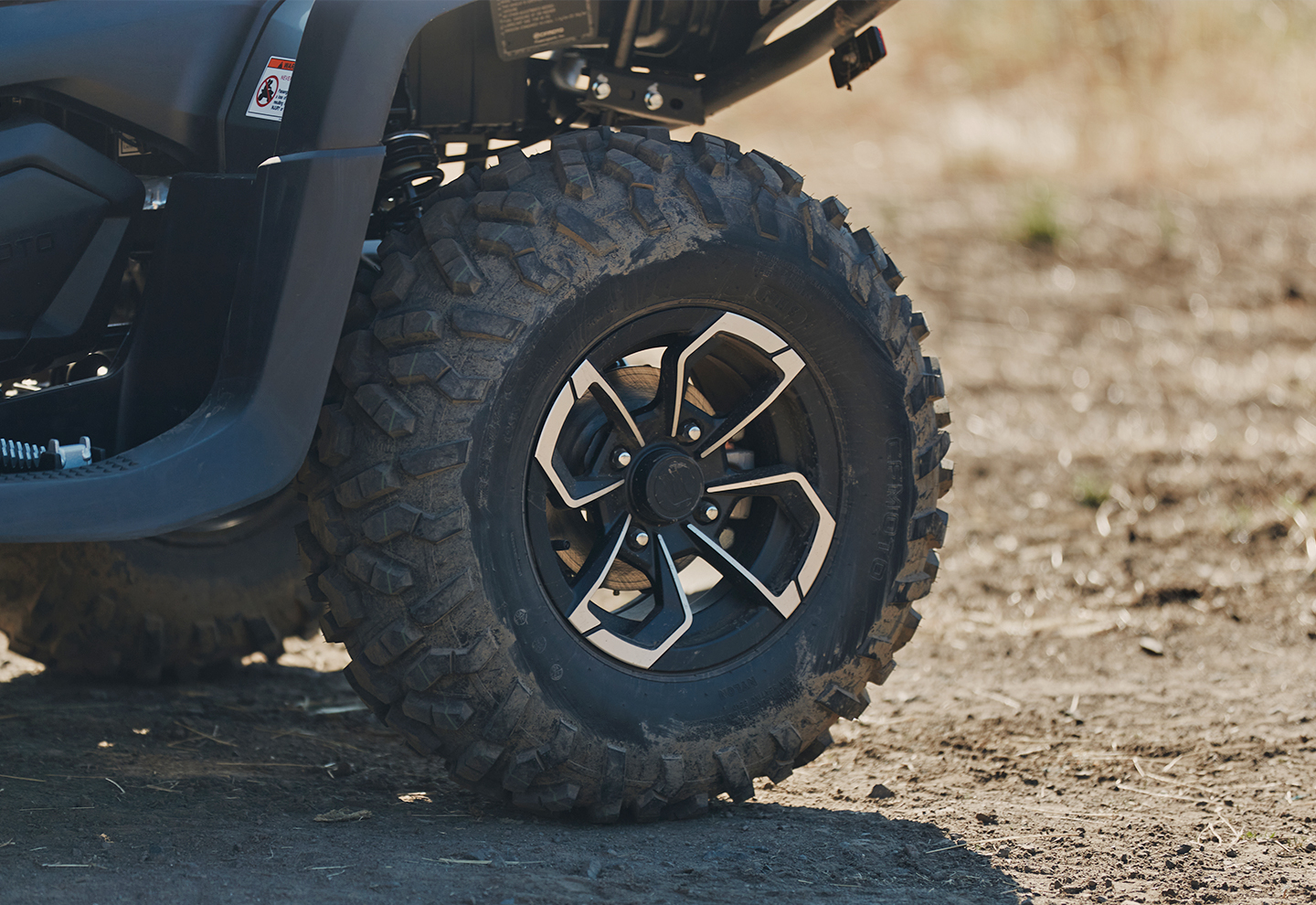

    Wheels:12-inch alloy
    Tyres:25-inch six-ply AT tyres


    DIMENSIONS

    L x W x H:2035 x 1180 x 1220mm
    Wheelbase:1280mm
    Ground clearance:270mm
    Weight (wet):395kg


    LOAD

    Towing capacity:612kg
    Carrying capacity:35kg front/70kg rear
    Person:One
    Fuel Capacity:18lt


    HIGHLIGHTS

    Power steering:Yes
    Alloy wheels:Yes
    25 inch tyres:Yes
    Premium carrier racks:Yes
    5-inch display:Yes
    Handguards:Yes
    Winch:Yes, 3000lb


    FEATURES

    Colour:Camouflage or Velocity Grey
    Warranty:Two years
    Tow pack, horn, lights and mirrors:Yes

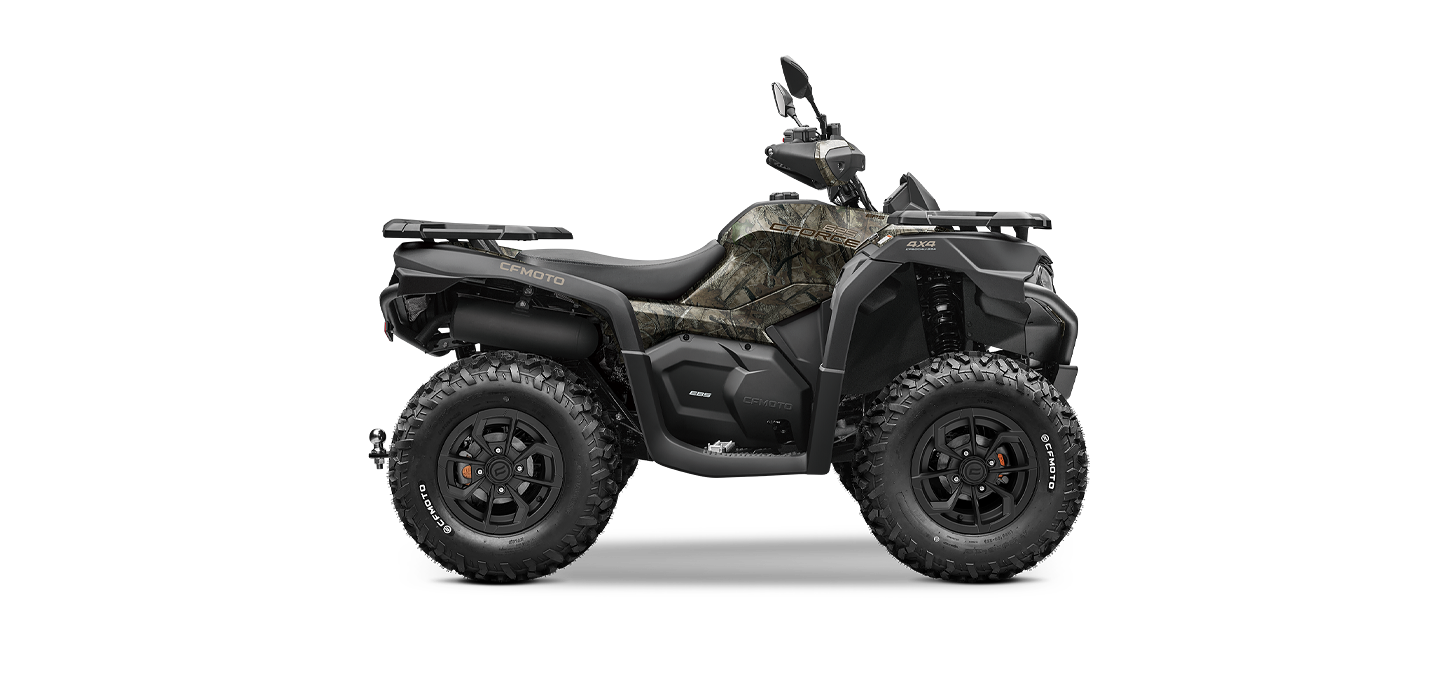

    CFORCE 625 EPS COLOURS

    CFORCE 625 EPS COLOURS

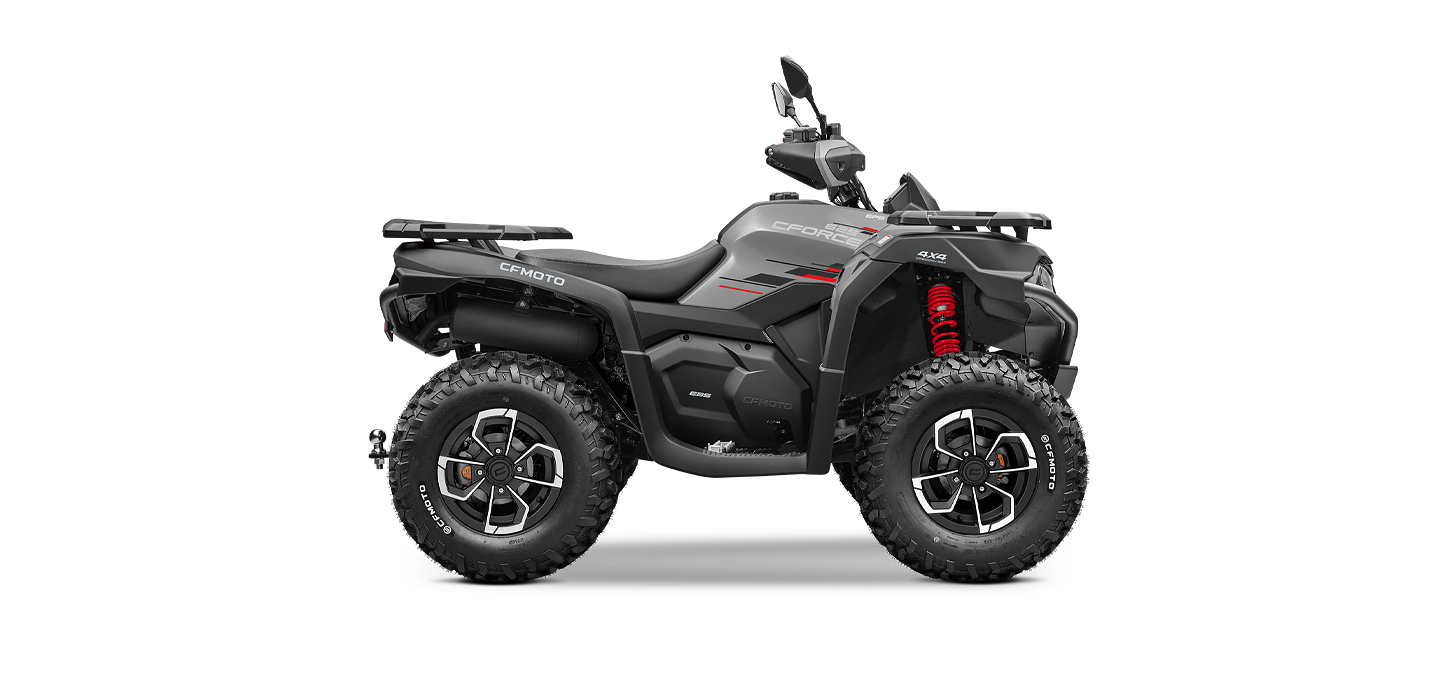

    Velocity Grey

    Camouflage

    CFORCE 625 EPS

    CFMOTO

    A global manufacturing powerhouse, CFMOTO has been producing quality powersports products for more than 30 years and is the largest exporter of ATVs and UTVs in China. The company's core values are continual improvement, innovation and quality - values that permeate throughout its global distribution network in Europe, north and south America, Canada, Africa and China.
    CFORCE 625 EPS
    *Valid from 1/03/24 to 31/03/24. National ride away prices are inclusive of freight to your local dealer and dealer pre-delivery charges. Excludes Regional WA and King Island dealers.
