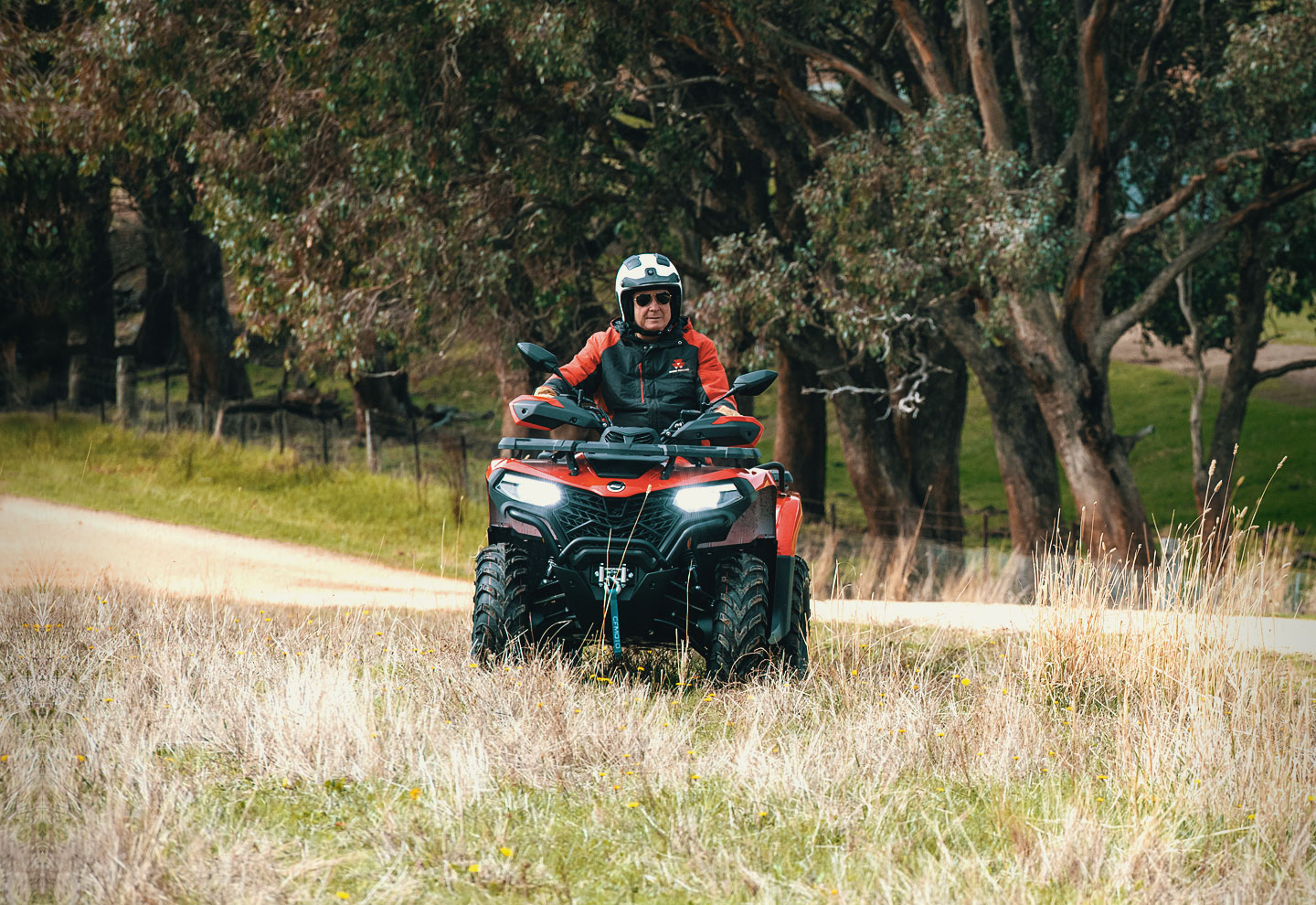

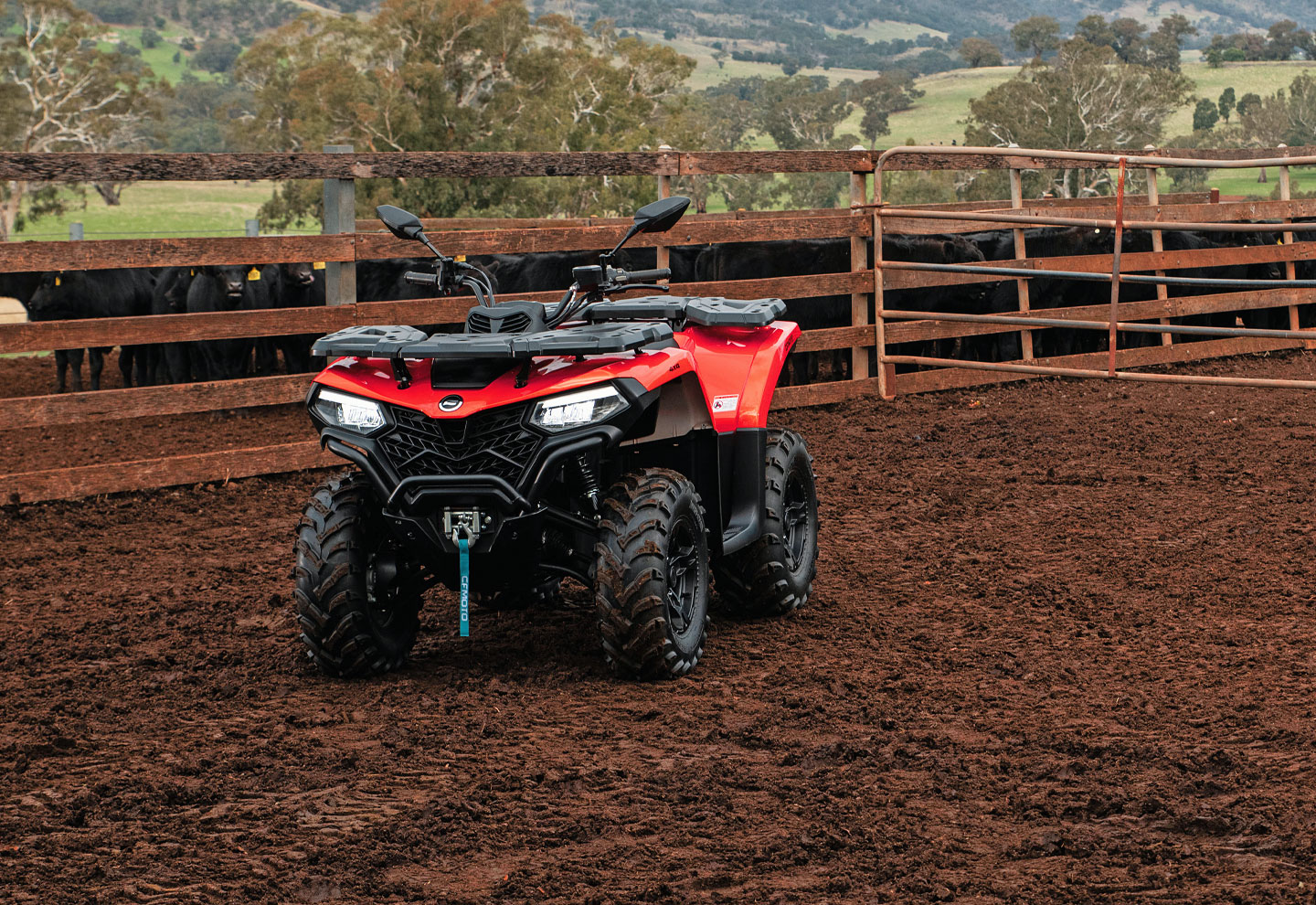

CFORCE 520 EPS

LIGHTER, STRONGER, SMARTER!

With refinements across the board, the new-generation CFORCE 520 EPS is not only stronger and lighter but has less vibration, a tighter turning circle, is more comfortable and has a smorgasbord of user-friendly attributes such as electronic power steering.

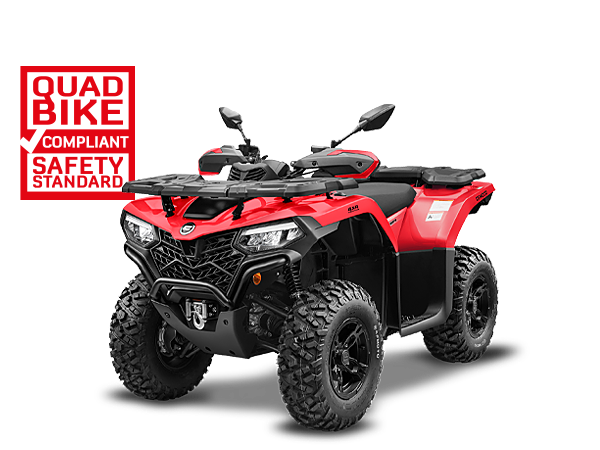

  • *Overseas model shown without Quadbar OPD installed. Model comes with handguards.

  • CFORCE 520 EPS

    LIGHTER, STRONGER, SMARTER!


    With refinements across the board, the new-generation CFORCE 520 EPS is not only stronger and lighter but has less vibration, a tighter turning circle, is more comfortable and has a smorgasbord of user-friendly attributes such as electronic power steering.

    *Overseas model shown without Quadbar OPD installed.
    .

    NUMBERS GAME

    CFMOTO has left no stone unturned, and the results are compelling: Stronger than ever with a 612kg towing capacity; 25 per cent tighter turning radius, now down to 5.6 metres one-up; 50 per cent more front and rear rack loading capacity; 30 per cent stronger and 10 per cent lighter frame; 26 per cent more suspension travel; 21 per cent more fuel capacity; 25 per cent less leg area temperature; and reduced vibration through handlebar, footrests and seat.

    WORK ASSETS

    The CFORCE 520’s work-ready attitude starts with the 38hp, 495cc, fuel-injected, four-stroke single-cylinder engine – perfect for the farm – with 2WD/4WD and a locking front differential. Other premium features: Force Red livery, alloy wheels, handguards, LED lights, five-inch LCD dash, 2500lb winch, plastic racks and 25-inch tyres.

    COMFORT ZONE

    Comfy while you do work! Ergonomic updates include a more rider-friendly handlebar position, a narrower fuel tank for more leg space – but with fuel capacity still increased to 17 litres! – and 40 per cent thicker seat foam to cushion your tush.

    TRAVEL PERKS

    More ground clearance (up to 254mm) and a 26 per cent increase in suspension travel – now 190mm at the front and 225mm at the rear. New six-ply all-terrain tyres are grippier and sturdier. And if water crossings are your go, the air intake has also been positioned 120mm higher to reduce the fear factor!

    EASY PEASY

    Let’s face it: maintenance isn’t something that creates mega anticipation. CFMOTO knows that, which is why it’s now easier than ever to access vitals such as the fuse box, coolant, brake fluid and air filter. The CVT assembly cover is all one piece, too, only requiring removal for belt replacement.

    NEW ATV LEGISLATION

    Mojo Motorcycles, the Australian importer of CFMOTO, has introduced an updated range of quad bikes to meet stage two requirements of the Consumer Goods (Quad Bike) Safety Standard. If the model is advertised with the ‘Quad Bike Safety Standard Compliant’ logo, it is compliant with the requirements of stage two and will be supplied with a Quadbar OPD. The price shown on this model page is the ride away price for this quad bike fitted with a Quadbar OPD. The Quadbar OPD is installed by your CFMOTO dealer during pre-delivery.

    For more information on Quadbar OPDs, visit www.quadbar.com

    Overseas model shown without Quadbar OPD installed. For more information on the new ATV legislation, visit our ATV legislation page in the menu or speak to your local dealer.

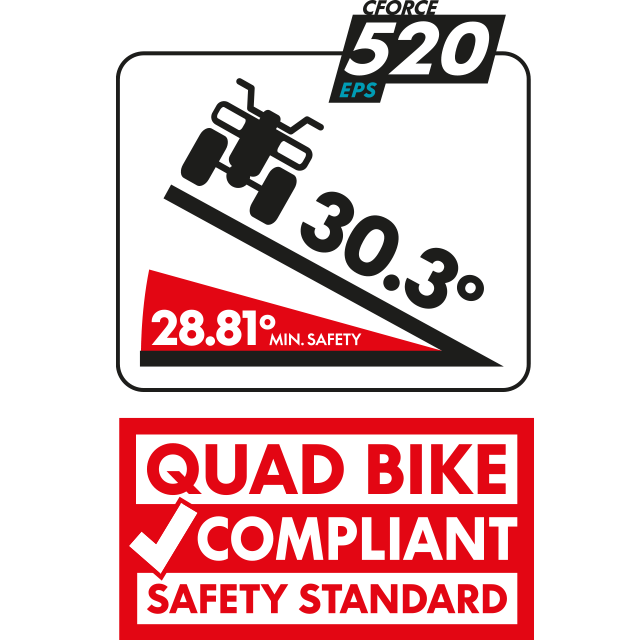

    TILT ANGLE

    To comply with stage two requirements of the Consumer Goods Quad Bike Safety Standard, all CFMOTO quad bikes have been tilt-angle tested. The minimum standard to pass the lateral stability tilt angle test is 28.81 degrees. The CFORCE 520 EPS exceeds the minimum lateral stability tilt angle test with a result of 30.3 degrees.

    SUPPORT
    YOU CAN TRUST

    Trusted by more than 50,000 Aussie farmers, CFMOTO is a brand you can rely on. Backed by a two-year warranty on all ATV models and supported by an 80-plus national dealer network to keep you going 24/7.

    MODEL
    HIGHLIGHTS

    - 38hp, 495cc, single cylinder four-stroke engine
    - Bosch electronic fuel injection
    - CVT transmission
    - Engine braking
    - Selectable 2WD/4WD
    - Push button-locking front differential
    - Power steering
    - Hydraulic disc brakes
    - Double A-Arm, independent suspension
    - Coil spring with oil dampening shocks
    with preload adjustment
    - 12-inch alloy wheels
    - 25-inch 6-ply all terrain tyres
    - Front and rear carrier racks
    - 612kg tow capacity
    - 30kg front/60kg rear carrier rack capacity
    - 2500lb winch
    - 5-inch display
    - LED headlights
    - Tow package, indicators, horn, mirrors and handguards
    - Two-year warranty
    - Available in Force Red

    CFORCE 520 EPS

    NUMBERS GAME

    CFMOTO has left no stone unturned, and the results are compelling:

  • Stronger than ever with a 612kg towing capacity;
  • 25 per cent tighter turning radius, now down to 5.6 metres one-up;
  • 50 per cent more front and rear rack loading capacity;
  • 30 per cent stronger and 10 per cent lighter frame;
  • 26 per cent more suspension travel;
  • 21 per cent more fuel capacity;
  • 25 per cent less leg area temperature; and
  • Reduced vibration through handlebar, footrests and seat.

  • CFORCE 520 EPS

    WORK ASSETS

    The CFORCE 520’s work-ready attitude starts with the 38hp, 495cc, fuel-injected, four-stroke single-cylinder engine – perfect for the farm – with 2WD/4WD and a locking front differential. Other premium features: Force Red livery, alloy wheels, handguards, LED lights, five-inch LCD dash, 2500lb winch, plastic racks and 25-inch tyres.

    CFORCE 520 EPS

    COMFORT ZONE

    Comfy while you do work! Ergonomic updates include a more rider-friendly handlebar position, a narrower fuel tank for more leg space – but with fuel capacity still increased to 17 litres! – and 40 per cent thicker seat foam to cushion your tush.

    CFORCE 520 EPS

    TRAVEL PERKS

    More ground clearance (up to 262mm) and a 26 per cent increase in suspension travel – now 190mm at the front and 225mm at the rear. New six-ply all-terrain tyres are grippier and sturdier. And if water crossings are your go, the air intake has also been positioned 120mm higher to reduce the fear factor!

    CFORCE 520 EPS

    EASY PEASY

    Let’s face it: maintenance isn’t something that creates mega anticipation. CFMOTO knows that, which is why it’s now easier than ever to access vitals such as the fuse box, coolant, brake fluid and air filter. The CVT assembly cover is all one piece, too, only requiring removal for belt replacement.

    CFORCE 520 EPS

    NEW ATV LEGISLATION

    Mojo Motorcycles, the Australian importer of CFMOTO, has introduced an updated range of quad bikes to meet stage two requirements of the Consumer Goods (Quad Bike) Safety Standard. If the model is advertised with the ‘Quad Bike Safety Standard Compliant’ logo, it is compliant with the requirements of stage two and will be supplied with a Quadbar OPD. The price shown on this model page is the ride away price for this quad bike fitted with a Quadbar OPD. The Quadbar OPD is installed by your CFMOTO dealer during pre-delivery. For more information on Quadbar OPDs, visit www.quadbar.com.

  • Overseas model shown without Quadbar OPD installed. For more information on the new ATV legislation, head to our ATV legislation page in the menu or speak to your local dealer.
  • CFORCE 520 EPS

    TILT ANGLE

    To comply with stage two requirements of the Consumer Goods Quad Bike Safety Standard all CFMOTO quad bikes have been tilt angle tested. The minimum standard to pass the lateral stability tilt angle test is 28.81 degrees. The CFORCE 520 EPS exceeds the minimum lateral stability tilt angle test with a result of 30.3 degrees.

    CFORCE 520 EPS

    SUPPORT YOU
    CAN TRUST

    Trusted by more than 50,000 Aussie Farmers, CFMOTO is a brand you can rely on. Backed by a two-year warranty on all ATV and UTV models and supported by an 80-plus national dealer network to keep you going 24/7.

    CFORCE 520 EPS SPECIFICATIONS

    CFORCE 520 EPS SPECIFICATIONS


    ENGINE & TRANSMISSION

    Engine type:Four-stroke single-cylinder
    Displacement:495cc
    Maximum power:38hp (28.3kW) at 7,000rpm
    Maximum torque:39Nm at 5,750rpm
    Fuel system:Bosch EFI
    Transmission:CVT with engine braking
    Drive:H-L-N-R-Park
    4WD:2WD/4WD with locking front differential
    Rear differential:Fixed
    Steering:Power


    SUSPENSION & BRAKES

    Suspension:Double A-Arm, independent
    Brakes:Hydraulic disc brakes


    WHEELS & TYRES

    Wheels:12-inch alloy
    Tyres:25-inch 6-ply CST


    DIMENSIONS

    L x W x H:2046 x 1125 x 1162mm
    Wheelbase:1260mm
    Ground clearance:262mm
    Wet weight:351kg


    LOAD

    Towing capacity:612kg
    Carrying capacity:30kg front/60kg rear
    Payload capacity:240kg
    Person:One
    Fuel capacity:17lt


    HIGHLIGHTS

    Power steering:Yes
    Alloy wheels:Yes
    25 inch tyres:Yes
    Premium carrier racks:Yes
    LED headlights:Yes
    5-inch LCD display:Yes
    Handguards:Yes
    Winch:Yes, 2500lb


    FEATURES

    Colour:Force Red
    Warranty:Two years
    Tow pack, horn, lights and mirrors:Yes

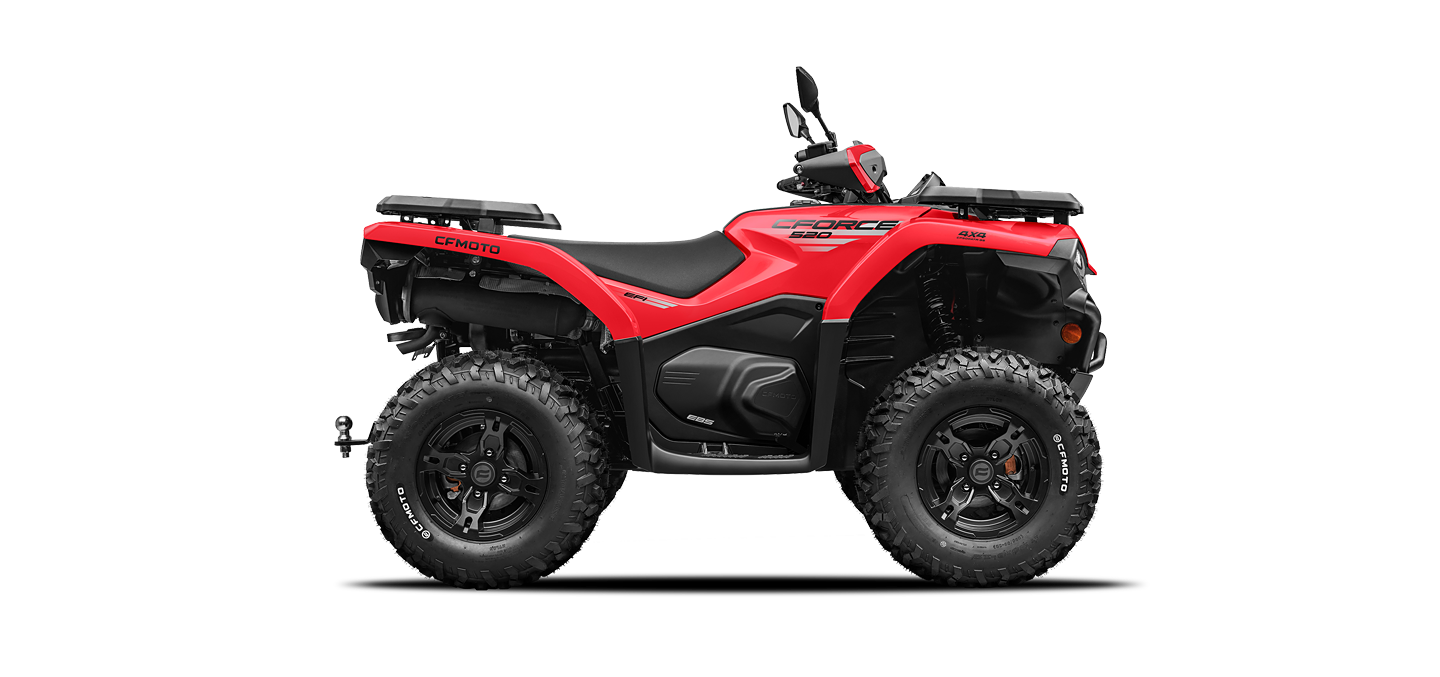

    CFORCE 520 EPS COLOURS

    CFORCE 520 EPS COLOURS

    Force Red

    CFORCE 520 EPS ACCESSORIES

    $269.35
    9DQV-801100-3001 - FRONT BUMPER ASSY
    9DQV-801100-3001 - FRONT BUMPER ASSY
    $1,799.00
    GCU-1600-AU - ATV TRAILER DUAL AXLE
    GCU-1600-AU - ATV TRAILER DUAL AXLE
    $193.91
    9DRV-802400-3000 - RACK EXTENDER
    9DRV-802400-3000 - RACK EXTENDER
    $160.42
    852114-00001 - FLEXGRIP TOOL SUPPORT
    852114-00001 - FLEXGRIP TOOL SUPPORT
    $830.96
    9DQV-801400-3000 - CFORCE 400-520 FARMSPEC KIT
    9DQV-801400-3000 - CFORCE 400-520 FARMSPEC KIT
    $96.87
    9DQV-808400-3000 CFMOTO CANVAS SEAT COVER MY23> CFORCE 400/520EPS
    9DQV-808400-3000 CFMOTO CANVAS SEAT COVER MY23> CFORCE 400/520EPS

    CFORCE 520 EPS ACCESSORIES

    $321.88
    9DQV-803100-3000 - FENDER FLARE ASSEMBLY
    9DQV-803100-3000 - FENDER FLARE ASSEMBLY
    $698.62
    9DQV-804100-3000 - HDPE Skid Plate Assembly
    9DQV-804100-3000 - HDPE Skid Plate Assembly
    $246.53
    9DQV-808100-3000 - HEATED GRIP ASSY
    9DQV-808100-3000 - HEATED GRIP ASSY
    $1,099.00
    GCV-1600A-AU - ATV TRAILER SINGLE AXLE TIPPING
    GCV-1600A-AU - ATV TRAILER SINGLE AXLE TIPPING
    $534.09
    9DS#-809200-6000 - REAR CARGO BAG
    9DS#-809200-6000 - REAR CARGO BAG
    $77.73
    0800-112000-100 - DUAL STAGE AIR FILTER - UNI
    0800-112000-100 - DUAL STAGE AIR FILTER - UNI

    CFORCE 520 EPS ACCESSORIES

    $71.76
    7020-800750 - SYNTHETIC WINCH ROPE
    7020-800750 - SYNTHETIC WINCH ROPE
    $98.28
    9DS#-809000-6000 - \u201CCF Connect\u201D Clamp
    9DS#-809000-6000 - “CF Connect” Clamp
    $246.53
    9DQV-802100-3000 - FRONT BASKET
    9DQV-802100-3000 - FRONT BASKET
    $268.06
    9DQV-801300-3001 - REAR BUMPER
    9DQV-801300-3001 - REAR BUMPER
    $366.22
    9DQV-801500-3000 - CFORCE 400/520 KIT
    9DQV-801500-3000 - CFORCE 400/520 KIT
    $449.00
    9DQV-806200-3001- FRONT CARGO BOX ASSY
    9DQV-806200-3001- FRONT CARGO BOX ASSY

    CFORCE 520 EPS ACCESSORIES

    $29.07
    5HY0-809100 - QUICK RELEASE ASSY
    5HY0-809100 - QUICK RELEASE ASSY

    CFORCE 520 EPS
