CFORCE 1000 EPS OVERLAND

BURGER WITH THE LOT

Based on the already spec-rich dual-seat CFORCE 1000 EPS, the CFORCE 1000 EPS Overland adds a suite of factory-fitted extras including beadlock rims, front and rear protector bars, LED riding lights, an 8mm full-length skid plate, premium paint, fender extenders and windshield.
  • Due to the mandatory fitment of an Operator Protection Device (OPD) by the Consumer Goods Safety Standard (stage two), the CFORCE 1000 EPS Overland will not be sold with the two storage boxes as shown in the video and images.
  • CFORCE 1000 EPS OVERLAND

    BURGER WITH
    THE LOT


    Based on the already spec-rich dual-seat CFORCE 1000 EPS, the CFORCE 1000 EPS Overland adds a suite of factory-fitted extras including beadlock rims, front and rear protector bars, LED riding lights, an 8mm full-length skid plate, premium paint, fender extenders and windshield.

    *Due to the mandatory fitment of an Operator Protection Device (OPD) by the Consumer Goods Safety Standard (stage two), the CFORCE 1000 EPS Overland will not be sold with the two storage boxes as shown in the video and images.



    GRUNT MASTER

    The 963cc fuel-injected V-twin engine produces 75hp (56kW) and 79Nm – the type of muscle that scoffs at any terrain or changes in elevation. The engine is an eight-valve, liquid-cooled design, with Bosch fuel injection.

    NO SCAR TISSUE

    With adventure often comes rugged rock, stump and pothole-infested terrain, so that’s why CFMOTO has fitted 8mm full-length skid plates made from 8mm high-density polyethylene.

    STEEL BARS

    Front and rear bumpers made from 38mm steel tube add extra layers of protection. At the front, that means the grille and 18w LED flood lights are protected.

    BEADLOCK RIMS

    The ultimate secure fit, allowing the operator to run lower air-pressures for a wider contact patch and increased traction for the beefy 27-inch CST tyres.

    SHOW AND SHINE

    The granite finish shimmers with a metallic lustre, highlighted by the electric-blue trim. The all-new graphics are colour-matched to the beadlock rims.

    FENDER EXTENDERS

    Pushing through some unglamorous terrain? The fender extenders will help keep you clean and dry.

    WINDBREAKER

    The CFORCE 1000 EPS Overland also comes standard with a windshield – just like a touring motorcycle!

    NEW ATV LEGISLATION

    Mojo Motorcycles, the Australian importer of CFMOTO, has introduced an updated range of quad bikes to meet stage two requirements of the Consumer Goods (Quad Bike) Safety Standard. If the model is advertised with the ‘Quad Bike Safety Standard Compliant’ logo, it is compliant with the requirements of stage two and will be supplied with a Quadbar OPD. The price shown on this model page is the ride away price for this quad bike fitted with a Quadbar OPD. The Quadbar OPD is installed by your CFMOTO dealer during pre-delivery.

    For more information on Quadbar OPDs, visit www.quadbar.com

    For more information on the new ATV legislation, visit our ATV legislation page in the menu or speak to your local Dealer.

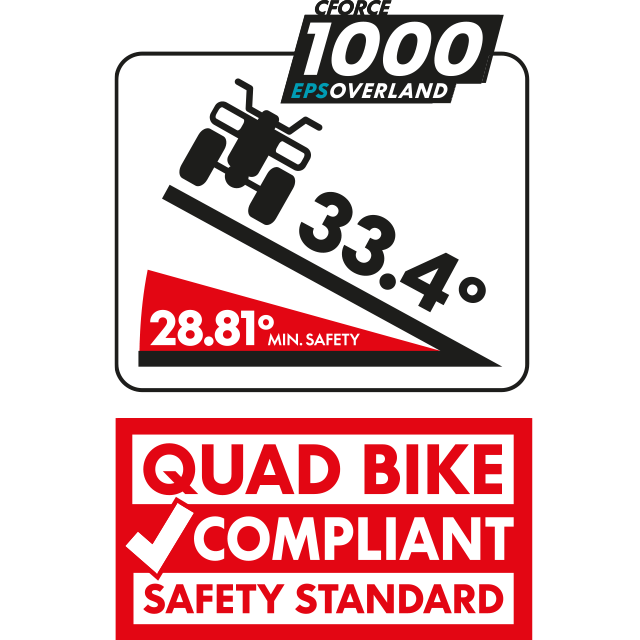

    TILT ANGLE

    To comply with stage two requirements of the Consumer Goods Quad Bike Safety Standard all CFMOTO quad bikes have been tilt angle tested. The minimum standard to pass the lateral stability tilt angle test is 28.81 degrees. The CFORCE 1000 EPS exceeds the minimum lateral stability tilt angle test with a result of 33.9 degrees.

    SUPPORT
    YOU CAN TRUST

    Trusted by more than 30,000 Aussie farmers, CFMOTO is a brand you can rely on. Backed by a two-year warranty on all ATV and UTV models and supported by an 80-plus national dealer network to keep you going 24/7.

    MODEL
    HIGHLIGHTS

    - 75hp (56kW), 963cc V-twin four-stroke engine
    - Bosch electronic fuel injection
    - Canadian CVTech transmission
    - Selectable 2WD/4WD
    - Push button-locking front differential
    - Limited-slip rear differential (LSD)
    - Electronic power steering (EPS)
    - Four-wheel hydraulic disc brakes
    - Double A-Arm, independent
    - Piggyback shock absorbers with preload,
    rebound and compression adjustment
    - Long wheelbase dual-seat with pillion backrest
    - 3000lb winch
    - 27-inch six-ply all-terrain CST tyres
    - Front and rear carrier racks
    - Large five-inch colour LCD display
    - Massive 500kg towing capacity
    - 280kg carrying capacity
    - Tow package, indicators, horn, mirrors and handguards
    - Two-year warranty
    - Available in Granite with Electric Blue

    OVERLAND SPEC

    - HDPE 8mm skid plates
    - Heavy duty 38mm steel front and rear protector bars
    - Integrated 18W LED flood lights for greater visibility
    - Factory-fitted 14-inch (16-bolt) Beadlock rims
    - Fender extenders
    - Overland inbuilt windscreen and handguards
    - Overland premium paint: Granite with Electric Blue
    - CF-Connect Cargo system to suit the wide range of
    CFMOTO accessories

    CFORCE 1000 EPS OVERLAND

    GRUNT MASTER

    The 963cc fuel-injected V-twin engine produces 75hp (56kW) and 79Nm – the type of muscle that scoffs at any terrain or changes in elevation. The engine is an eight-valve, liquid-cooled design, with Bosch fuel injection.

    4WD

    The Overland comes with a durable Canadian CVTech transmission with selectable 2WD/4WD, front diff lock and rear limited slip diff to get you where you need to go.

    CFORCE 1000 EPS OVERLAND

    NO SCAR TISSUE

    With adventure often comes rugged rock, stump and pothole-infested terrain, so that’s why CFMOTO has fitted 8mm full-length skid plates made from 8mm high-density polyethylene.

    CFORCE 1000 EPS OVERLAND

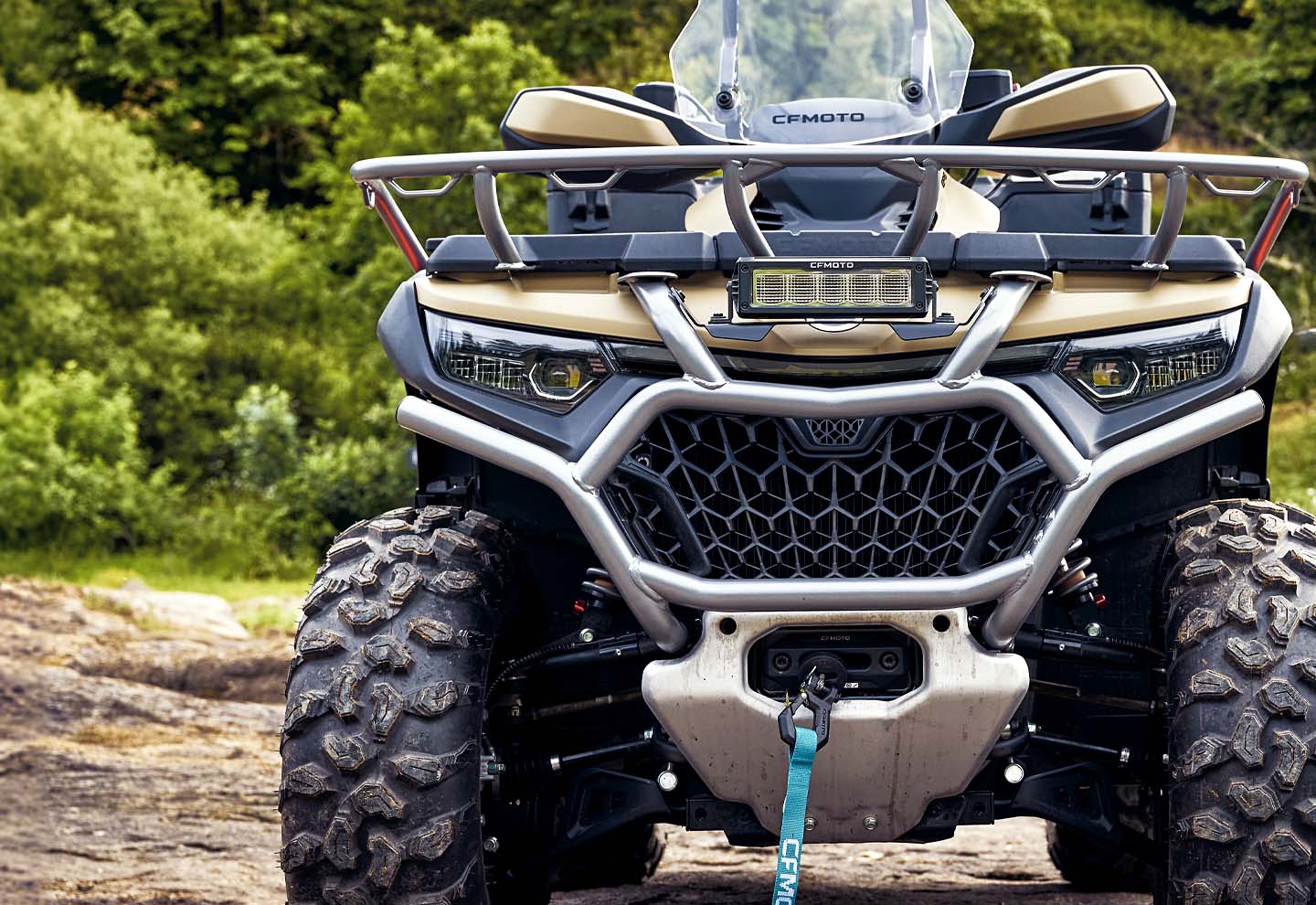

    STEEL BUMPER BARS

    Front and rear bumpers made from 38mm steel tube add extra layers of protection. At the front, that means the grille and 18w LED flood lights are protected.

    3500lb WINCH

    To keep you out of trouble the CFORCE 1000 EPS Overland comes standard with 3500lb electric winch.

    CFORCE 1000 EPS OVERLAND

    BEADLOCK RIMS OPEN UP NEW POSSIBILITIES

    The ultimate secure fit, allowing the operator to run lower air-pressures for a wider contact patch and increased traction for the beefy 27-inch CST tyres.

    CFORCE 1000 EPS OVERLAND

    SHOW AND SHINE

    The granite finish shimmers with a metallic lustre, highlighted by the electric-blue trim. The all-new graphics are colour-matched to the beadlock rims.

    CFORCE 1000 EPS OVERLAND

    FENDER EXTENDERS

    Pushing through some unglamorous terrain? The fender extenders will help keep you clean and dry.

    POWER STEER

    Electronic power steering for easy manoeuvring at low speeds.

    CFORCE 1000 EPS OVERLAND

    WINDBREAKER

    The CFORCE 1000 EPS Overland also comes standard with a windshield – just like a touring motorcycle!

    CFORCE 1000 EPS OVERLAND

    NEW ATV LEGISLATION

    Mojo Motorcycles, the Australian importer of CFMOTO, has introduced an updated range of quad bikes to meet stage two requirements of the Consumer Goods (Quad Bike) Safety Standard. If the model is advertised with the ‘Quad Bike Safety Standard Compliant’ logo, it is compliant with the requirements of stage two and will be supplied with a Quadbar OPD. The price shown on this model page is the ride away price for this quad bike fitted with a Quadbar OPD.The Quadbar OPD is installed by your CFMOTO dealer during pre-delivery. For more information on Quadbar OPDs, visit www.quadbar.com
  • For more information on the new ATV legislation, visit our ATV legislation page in the menu or speak to your local Dealer.
  • CFORCE 1000 EPS OVERLAND

    TILT ANGLE

    To comply with stage two requirements of the Consumer Goods Quad Bike Safety Standard all CFMOTO quad bikes have been tilt angle tested. The minimum standard to pass the lateral stability tilt angle test is 28.81 degrees. The CFORCE 1000 EPS exceeds the minimum lateral stability tilt angle test with a result of 33.9 degrees.

    CFORCE 1000 EPS OVERLAND

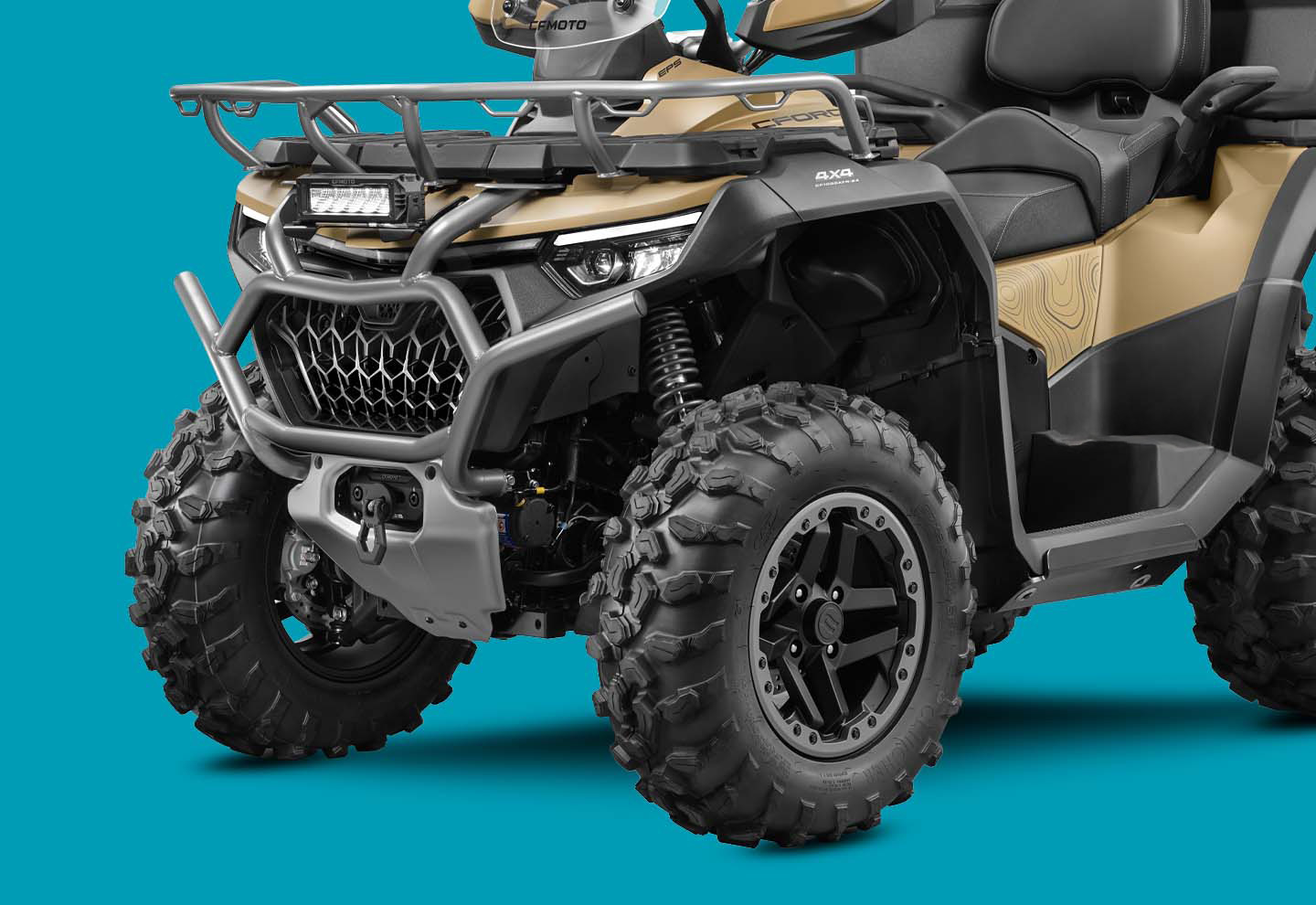

    FRONT-BAR

    • Front and rear bumpers made from 38mm steel tube
    • Pair of 18w LED flood lights
    • 3000lb winch

    CFORCE 1000 EPS OVERLAND
    WHEEL

    • 14-inch Black/ Electric Blue 16-bolt Beadlock rims
    • 27-inch six-ply CST tyres
    • Four-wheel hydraulic disc brakes with combined braking system (CBS)

    CFORCE 1000 EPS OVERLAND

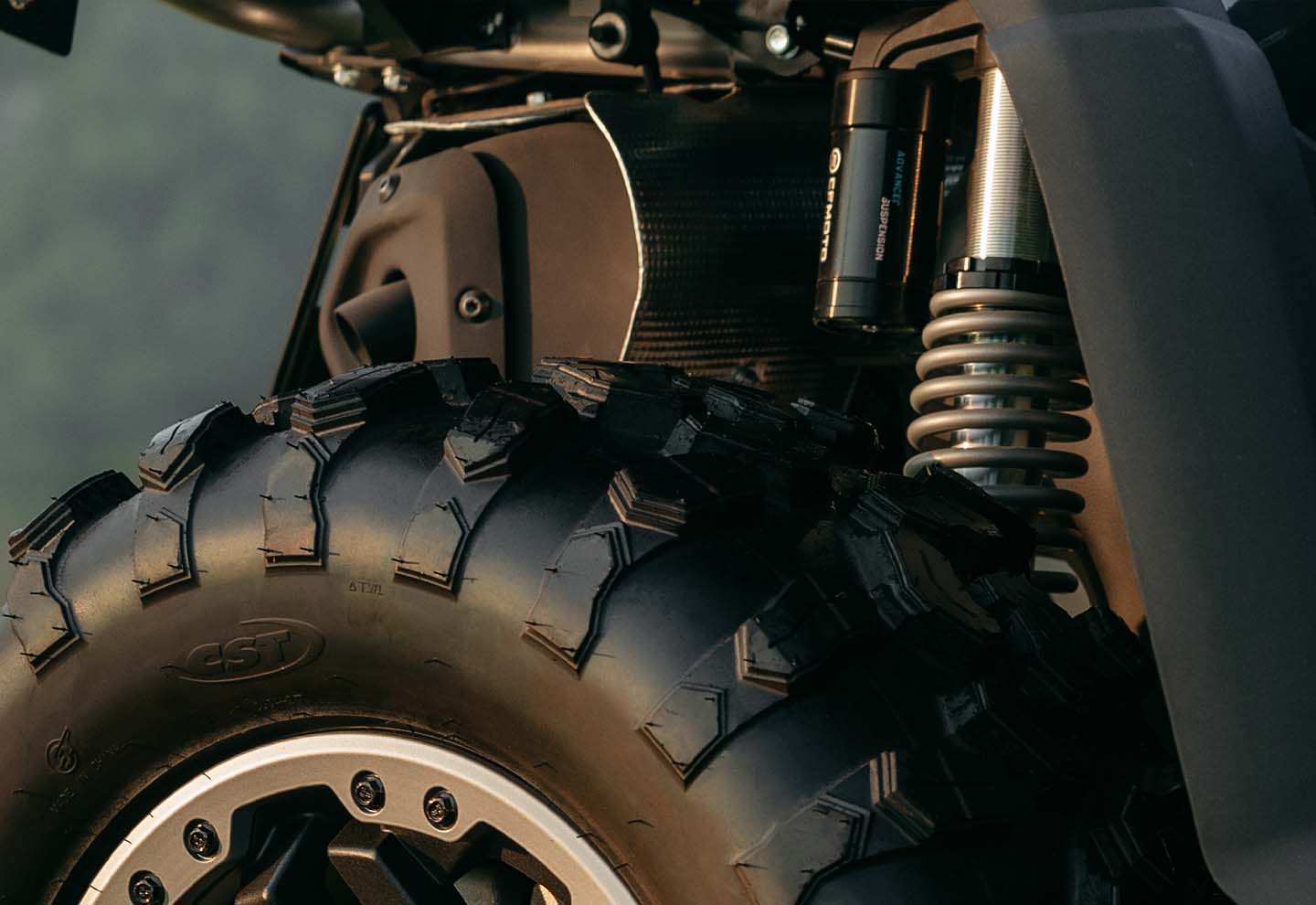

    SUSPENSION

    • Double A-Arm (front) and trailing-arm (rear) A-Arm suspension
    • Piggyback shock absorbers with preload, rebound and compression adjustment

    CFORCE 1000 EPS OVERLAND
    UP-FRONT

    • Overland inbuilt windscreen and handguards

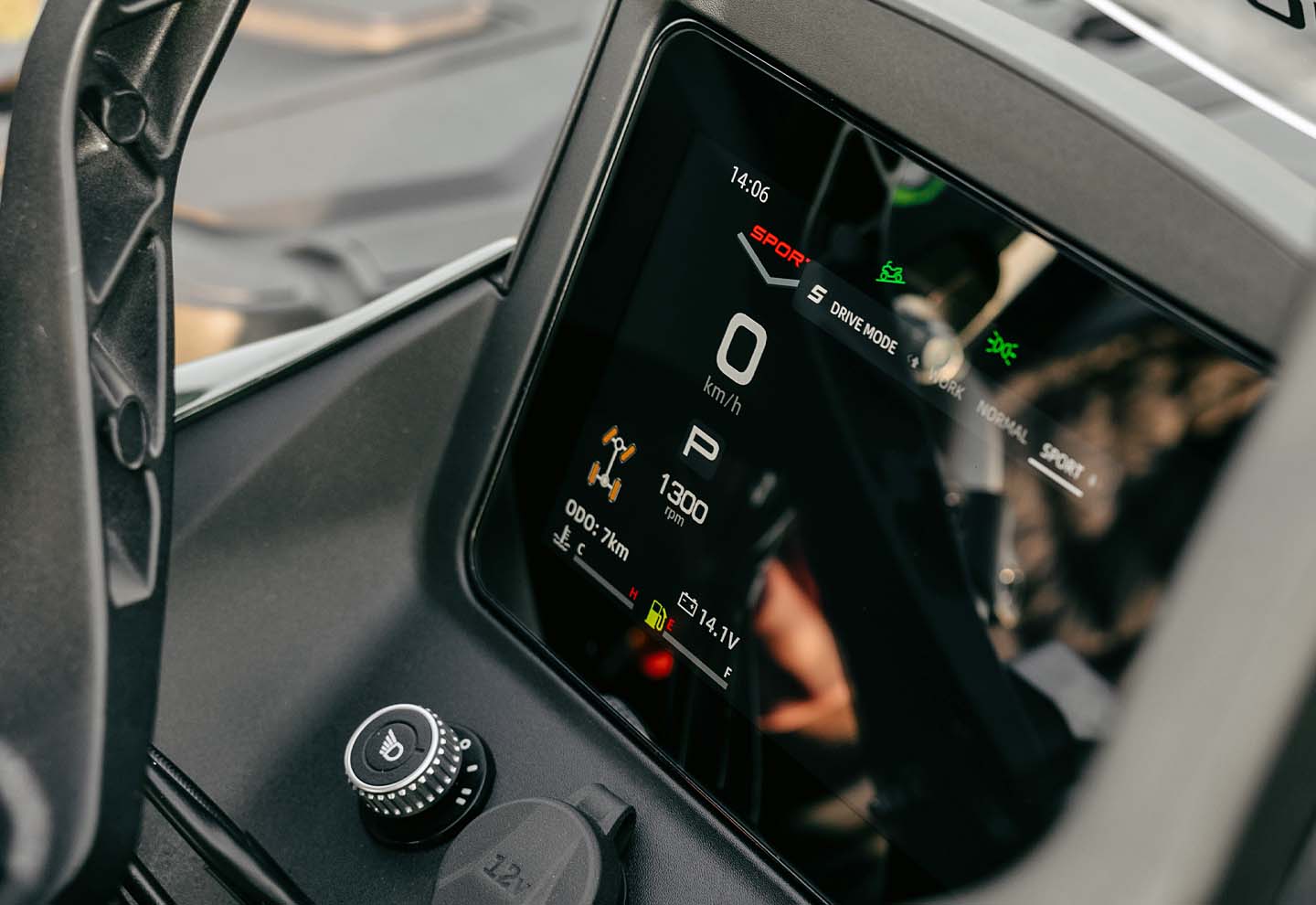

    • Large five-inch colour LCD display
    • Electronic power steering (EPS)
    • Selectable 2WD/4WD
    • Push button-locking front differential

    CFORCE 1000 EPS OVERLAND
    ENGINE

    • 75hp (56kW), 963cc, V-twin, liquid-cooled, EFI four-stroke engine
    • Tough CVTech transmission
    • L-H-N-R range and Park

    CFORCE 1000 EPS OVERLAND
    OFF-ROAD

    • HDPE 8mm skid plates
    • 300mm ground clearance

    CFORCE 1000 EPS OVERLAND
    DUAL-SEAT

    • Long wheelbase dual-seat ATV
    • Integrated pillion backrest and grab rails

    CFORCE 1000 EPS OVERLAND
    FENDER-EXTENDERS

    • Fender extenders at all four corners
    • Overland premium paint: Granite with Electric Blue

    CFORCE 1000 EPS OVERLAND
    CARRY

    • Heavy-duty front and rear carrier racks
    • 450kg towing capacity
    • 240kg carrying capacity
    • Tow package

    CFORCE 1000 EPS OVERLAND

    SUPPORT YOU
    CAN TRUST

    Trusted by more than 30,000 Aussie farmers, CFMOTO is a brand you can rely on. Backed by a two-year warranty on all ATV and UTV models and supported by an 80-plus national dealer network to keep you going 24/7.

    CFORCE 1000 EPS OVERLAND SPECIFICATIONS

    CFORCE 1000 EPS OVERLAND SPECIFICATIONS


    ENGINE & TRANSMISSION

    Engine type:V-twin, liquid-cooled four-stroke
    Displacement:963cc
    Maximum power:75hp (56kW)
    Maximum torque:79Nm
    Fuel system:Bosch EFI
    Transmission:Canadian CVTech
    Drive:H-L-N-R-Park
    4WD:2WD/4WD with locking front differential
    Rear differential:Limited slip
    Steering:Power


    SUSPENSION & BRAKES

    Suspension:Double A-Arm, independent
    Brakes:Four-wheel hydraulic disc brakes with combined braking system (CBS)


    WHEELS & TYRES

    Wheels:14-inch Black/ Electric Blue 16-bolt Beadlock rims
    Tyres:27-inch 6ply CST tyres


    DIMENSIONS

    L x W x H:2310 x 1264 x 1420mm
    Wheelbase:1480mm
    Ground clearance:300mm
    Dry weight:490kg


    LOAD

    Towing capacity:450kg
    Carrying capacity:35kg front/70kg rear
    Payload capacity:240kg
    Persons:Two
    Fuel capacity:30lt


    OVERLAND HIGHLIGHTS

    Beadlock rims:Yes
    Front protector bar:Yes
    Rear protector bar:Yes
    LED driving lights:Yes
    Skid plate:Yes
    Premium paint:Yes
    Fender extenders:Yes
    Windshield:Yes
    Handguards:Yes
    CFMOTO Connect:Yes


    OTHER

    Colour:Granite Ridge with Electric Blue
    Warranty:Two years
    Tow pack, horn, lights and mirrors:Yes

    CFORCE 1000 EPS OVERLAND COLOURS

    CFORCE 1000 EPS OVERLAND COLOURS

    Granite Ridge with Electric Blue

    CFORCE 1000 EPS OVERLAND

    CFMOTO

    A global manufacturing powerhouse, CFMOTO has been producing quality powersports products for more than 30 years and is the largest exporter of ATVs and UTVs in China. The company's core values are continual improvement, innovation and quality - values that permeate throughout its global distribution network in Europe, north and south America, Canada, Africa and China.
    CFORCE 1000 EPS OVERLAND
    *National ride away prices are inclusive of freight to your local dealer and dealer pre-delivery charges. Excludes Regional WA dealers.
